REP 5.23
Repairs and Adjustments
8. Clean the DADF components (Figure 4).

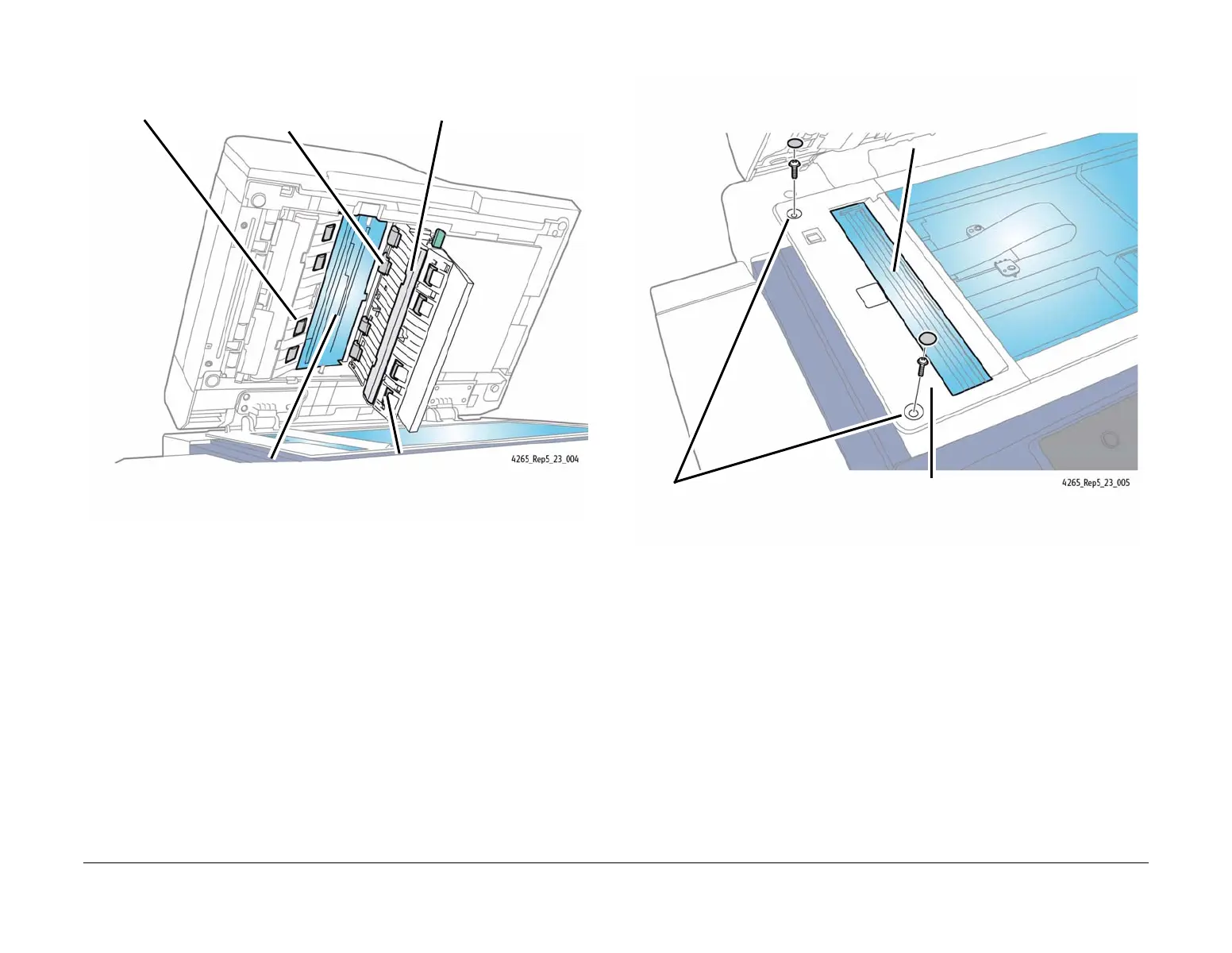

Figure 4 Cleaning the DADF Components
9. Grip the tab and close the Cover.
10. Clean the ADF Scanner Glass (Figure 5).
Figure 5 Cleaning the ADF Scanner Glass
11. Close the DADF Unit and return the machine to normal operation.
1
Clean the four Duplex
Scan rollers.
3
Clean the four Out-
feed Rollers.
2
Clean the White Bar.
5
Clean the scanner
glass.
4
Clean the four rollers.
1
Remove the two plugs, and remove the
two mounting screws beneath them.
2
Remove the ADF Scanner Glass
assembly. Clean the underside of
the glass.
3
Reinstall the ADF Scanner Glass
assembly. Clean the top surface of the
glass.
4
Reinstall the two mounting screws
and two plugs.
