Xerox WorkCentre 4150 Service Manual

January 2016
4-123
WorkCentre WorkCentre 4150/4250/42604150/4250/4260WorkCentre 4150/
REP 7.7
Repairs and Adjustments

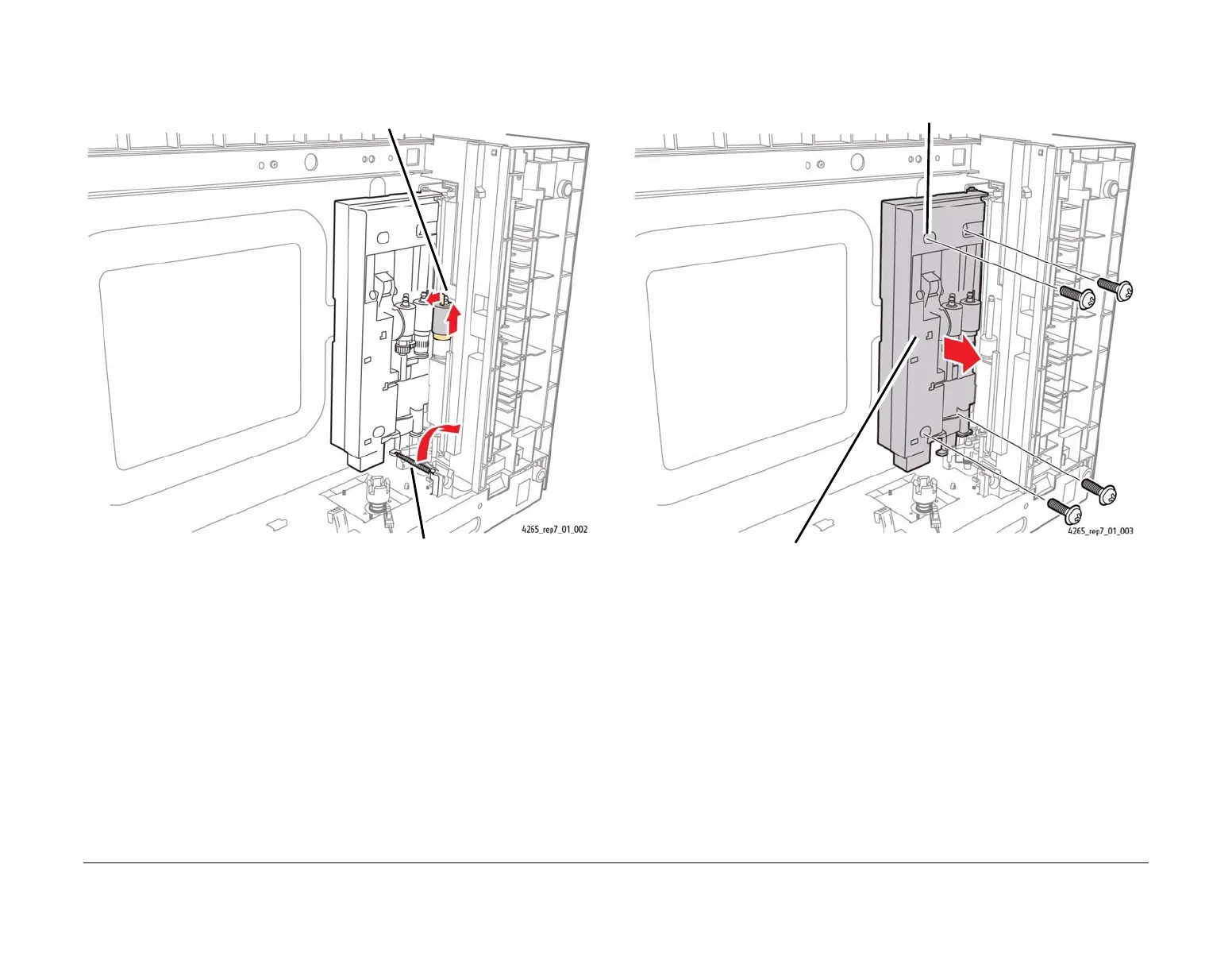

11. Remove the Feed Head spring and retard roll (Figure 2).
Figure 2 Removing the Feed Head Spring and Retard Roll
12. Remove the Tray Feed Assembly (Figure 3).
Figure 3 Removing the Tray Feed Assembly
1
Remove the spring.
2
Remove the plastic retaining clip and
remove the Retard Roll.
1
Remove the four mounting screws.
2
Remove the Tray Feed Assembly.
