Xerox WorkCentre 4150 Service Manual

January 2016
4-130
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 8.2
Repairs and Adjustments

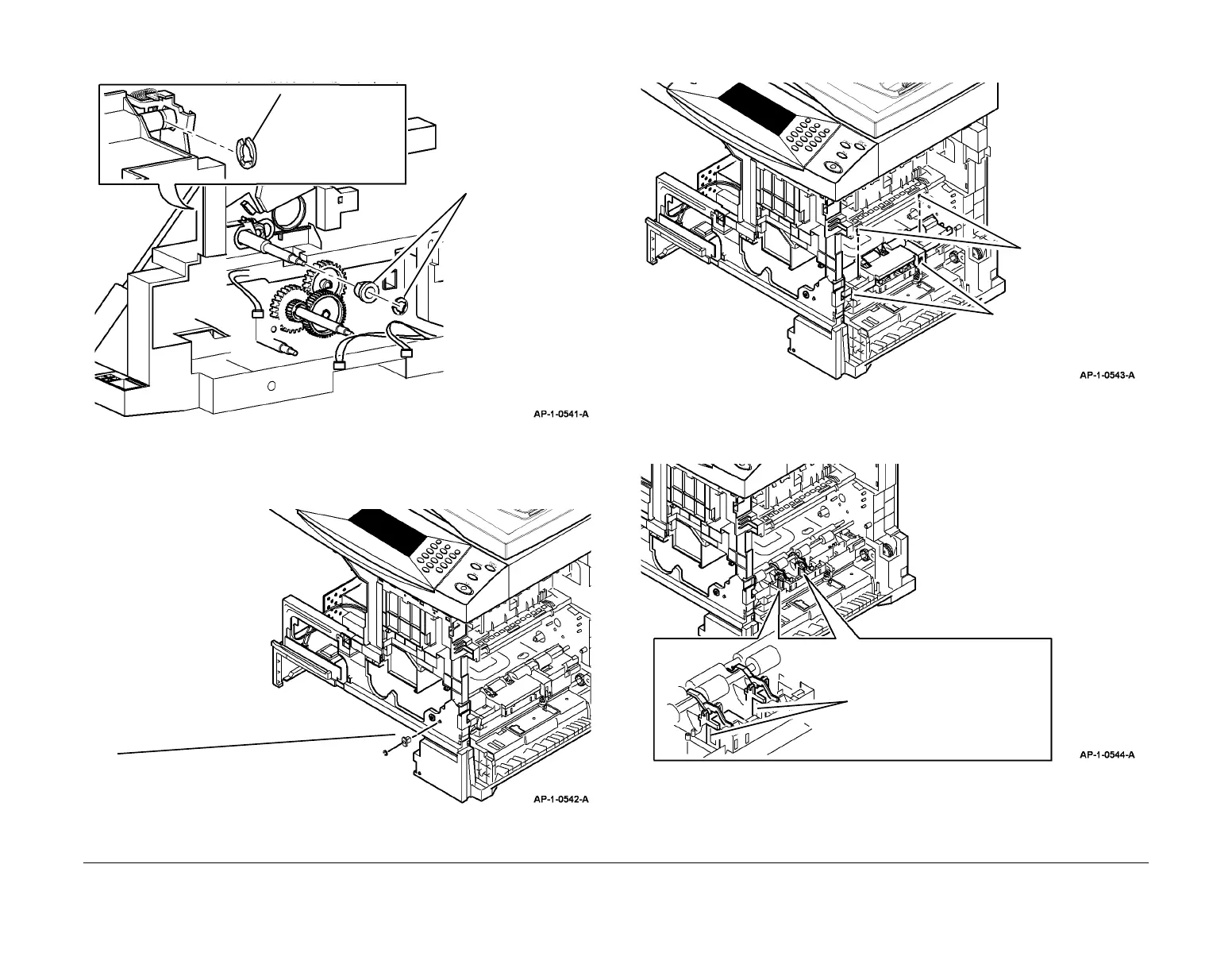

10. Prepare the rear of the registration roll, Figure 2.
Figure 2 Preparation
11. Prepare the front of the registration roll, Figure 3.
Figure 3 Preparation
12. Remove the registration roll cover, Figure 4.
Figure 4 Cover Removal
13. Remove the actuator assemblies, Figure 5.
Figure 5 Actuator Assembly Removal
14. If necessary, remove the duplex jam 2 sensor actuator assembly, PL 8.15 Item 15.
1
Remove the E-clip,
then the bearing.
2
Remove the E-clip.
1
Remove the E-clip, then the
bearing.
1
Remove 2 screws.
2
Unclip, then remove the
registration roll cover.
1
Unclip, then remove both actuator
assemblies.
