Xerox WorkCentre 4150 Service Manual

January 2016
4-131
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 8.2
Repairs and Adjustments

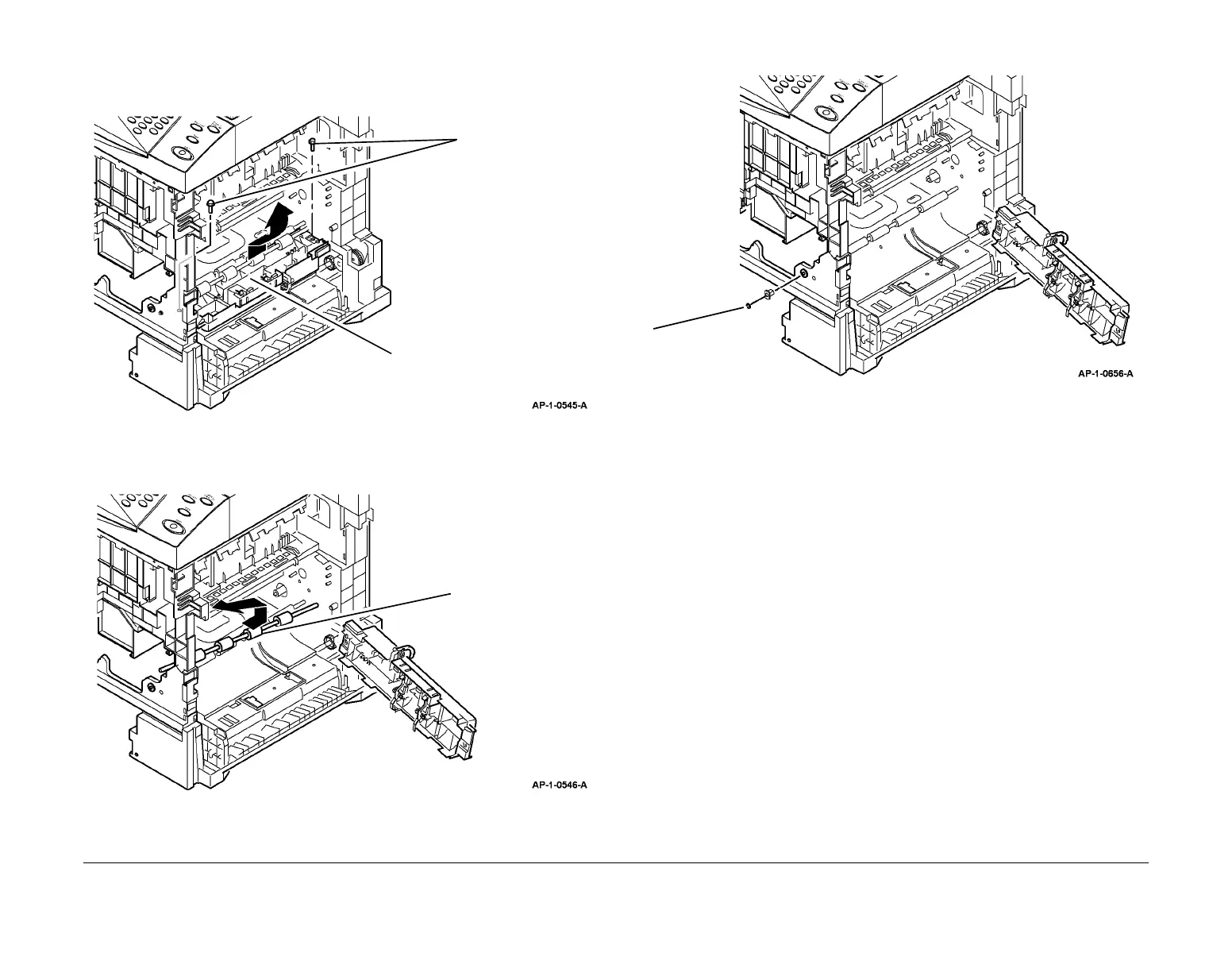

15. Remove the registration guide, Figure 6.
NOTE: The connectors in the registration guide can remain connected.
Figure 6 Registration Guide Removal
16. Remove the registration roll, Figure 7.
Figure 7 Registration Roll Removal
17. Remove the front registration idler roll bearing, Figure 8.
Figure 8 Front Bearing Removal
2
Remove the registration guide.
1
Remove 2 screws.
1
Remove the registration
roll.
1
Remove the E-clip,
then the bearing.
