Xerox WorkCentre 4150 Service Manual

January 2016
4-133
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 8.2
Repairs and Adjustments
20. Remove the registration roll idler, Figure 11.

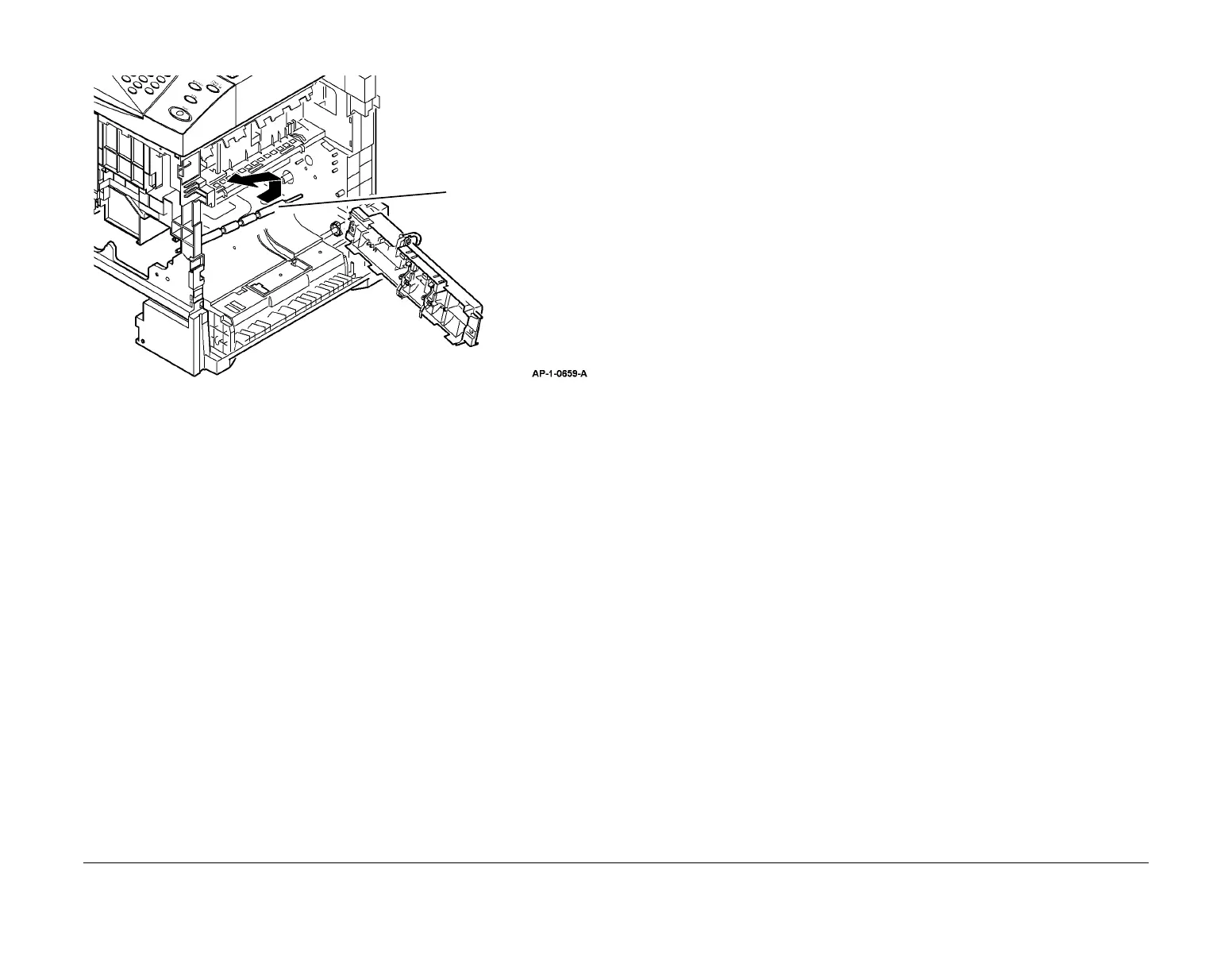

Figure 11 Registration Roll Idler Removal
Replacement
1. Replacement is the reverse of the removal procedure.
2. The actuators are different. Ensure that they are installed correctly, refer to PL 8.15.
1
Remove the registration
roll idler.
