January 2016
4-153
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 10.5
Repairs and Adjustments
3. Remove the front and rear carbon brush assemblies, Figure 2.
NOTE: Figure 2 shows the removal of the front carbon brush assembly. The procedure
for removing the front or rear carbon brush assembly is identical.

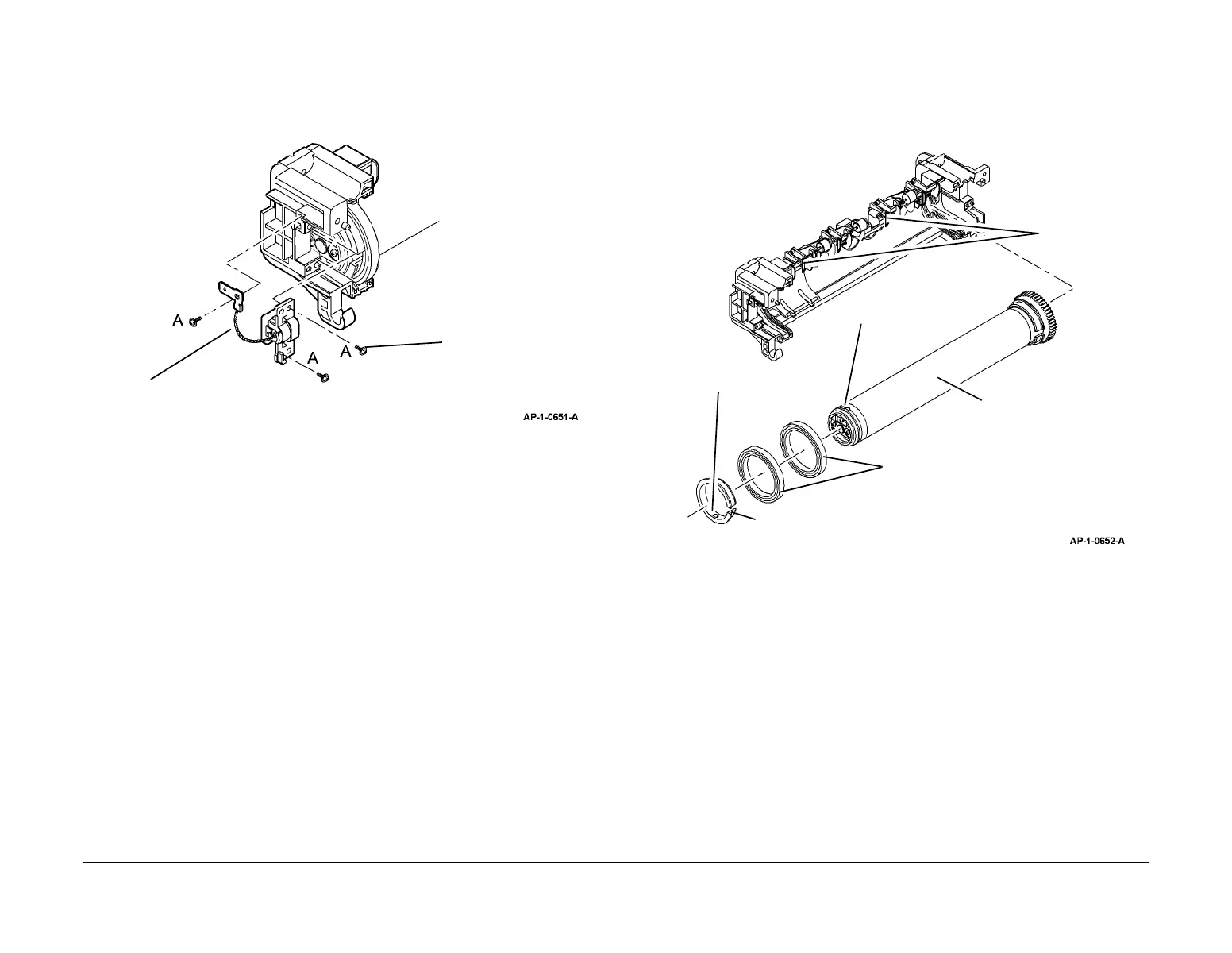

Figure 2 Carbon brush removal
CAUTION
Do not damage the fuser stripper fingers when removing the heat roller assembly.
4. Remove the heat roller and bearings, Figure 3.
Figure 3 Heat roller removal
1
Remove the 3
screws marked A.
2
Remove the carbon
brush assembly.
1
Carefully remove the heat
roller assembly.
2
Remove the front collar.
3
Remove the bearings.
Locating tab
Recess
Stripper fingers
(4 off).
To Next Page
