January 2016
4-154
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 10.5
Repairs and Adjustments

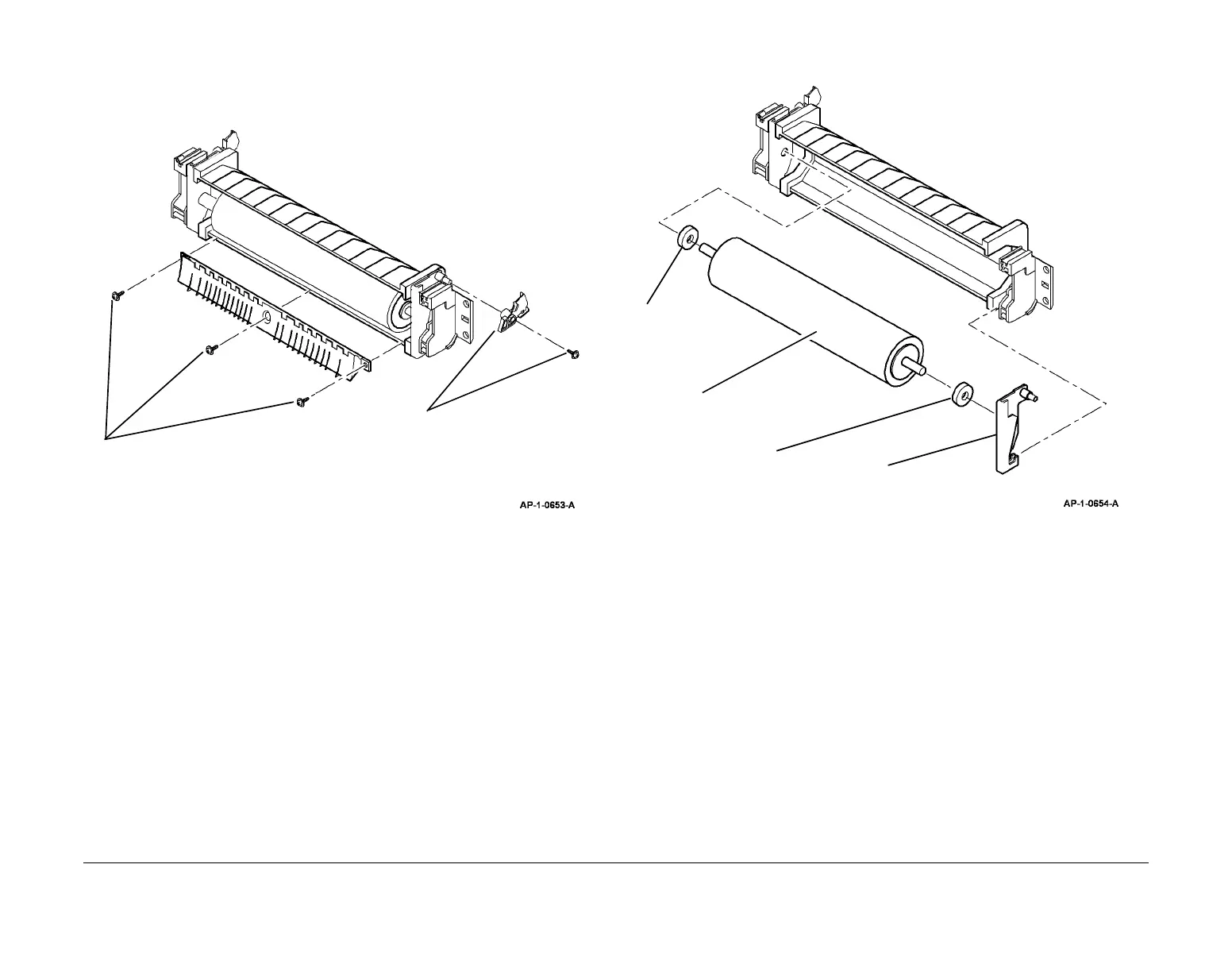

5. Prepare to remove the pressure roller bearings, Figure 4.
Figure 4 Preparation
6. Remove the pressure roller bearings, Figure 5.
Figure 5 Pressure roller bearing removal
7. Remove the cleaning shaft, PL 10.26 Item 25.
1
Remove 3 screws, then
the input guide.
2
Remove 1 screw, then the
front jam lever.
1
Release the front
bracket.
2
Remove the front
bearing.
3
Remove the
pressure roller.
4
Remove the rear
bearing.
