Xerox WorkCentre 4150 Service Manual

January 2016
4-157
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 10.7
Repairs and Adjustments
2. Remove the CRUM Assembly (Figure 1).

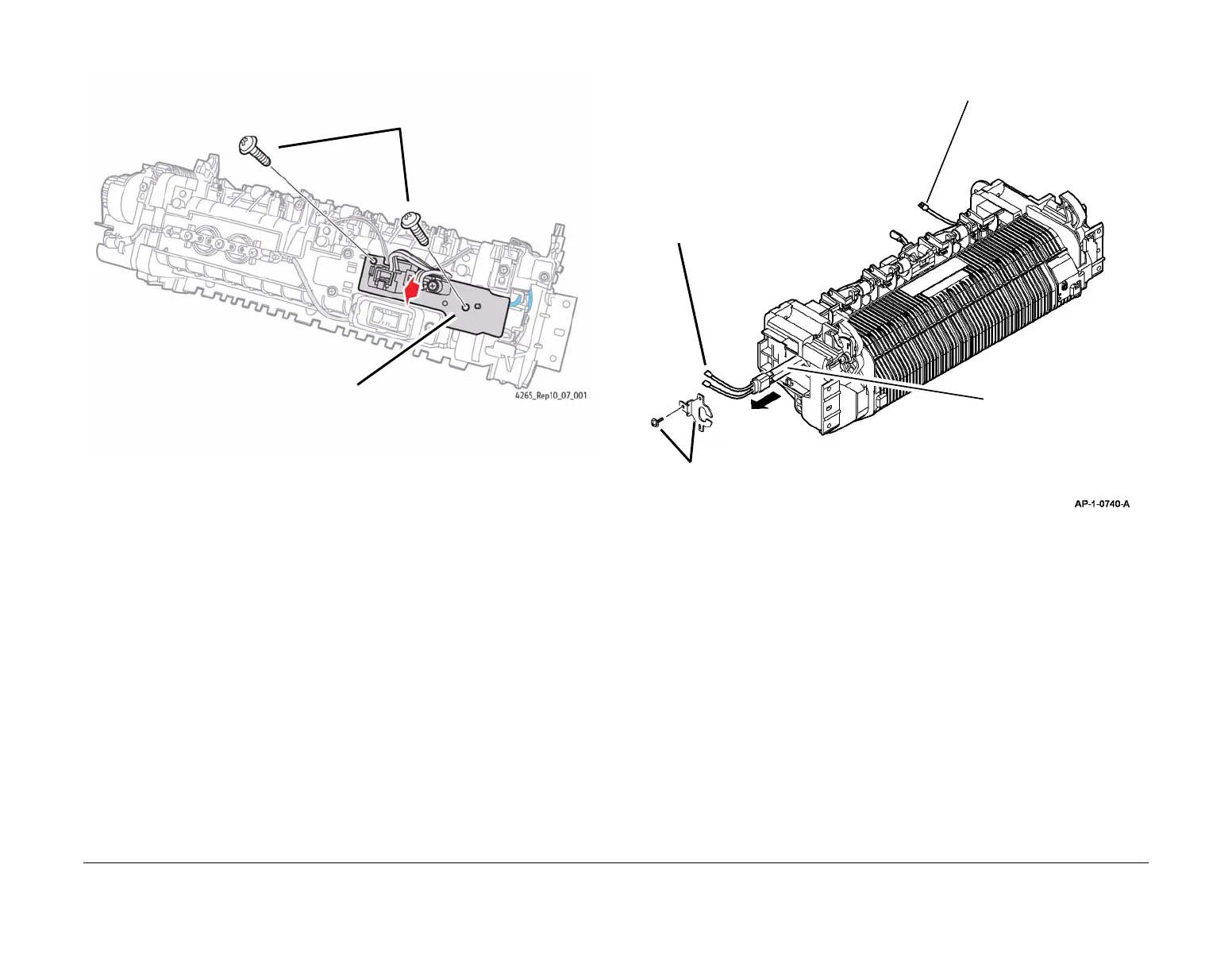

Figure 1 Removing the CRUM Assembly
3. Remove the Heat Lamp Assembly (Figure 2).
Figure 2 Removing the Heat Lamp Assembly
1
Remove the two mounting screws.
2
Remove the CRUM
Assembly.
1
Disconnect the rear connec-
tor and remove the wire
from the wire guides.
2
Disconnect the front
connectors and
remove the wires from
the wire guides.
3
Remove 1 screw, and remove the front Heat Lamp
Bracket.
4
Carefully remove the
heat lamp.
