Xerox WorkCentre 4150 Service Manual

January 2016
4-158
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 10.7
Repairs and Adjustments
4. Separate the Fuser Assembly (Figure 3).

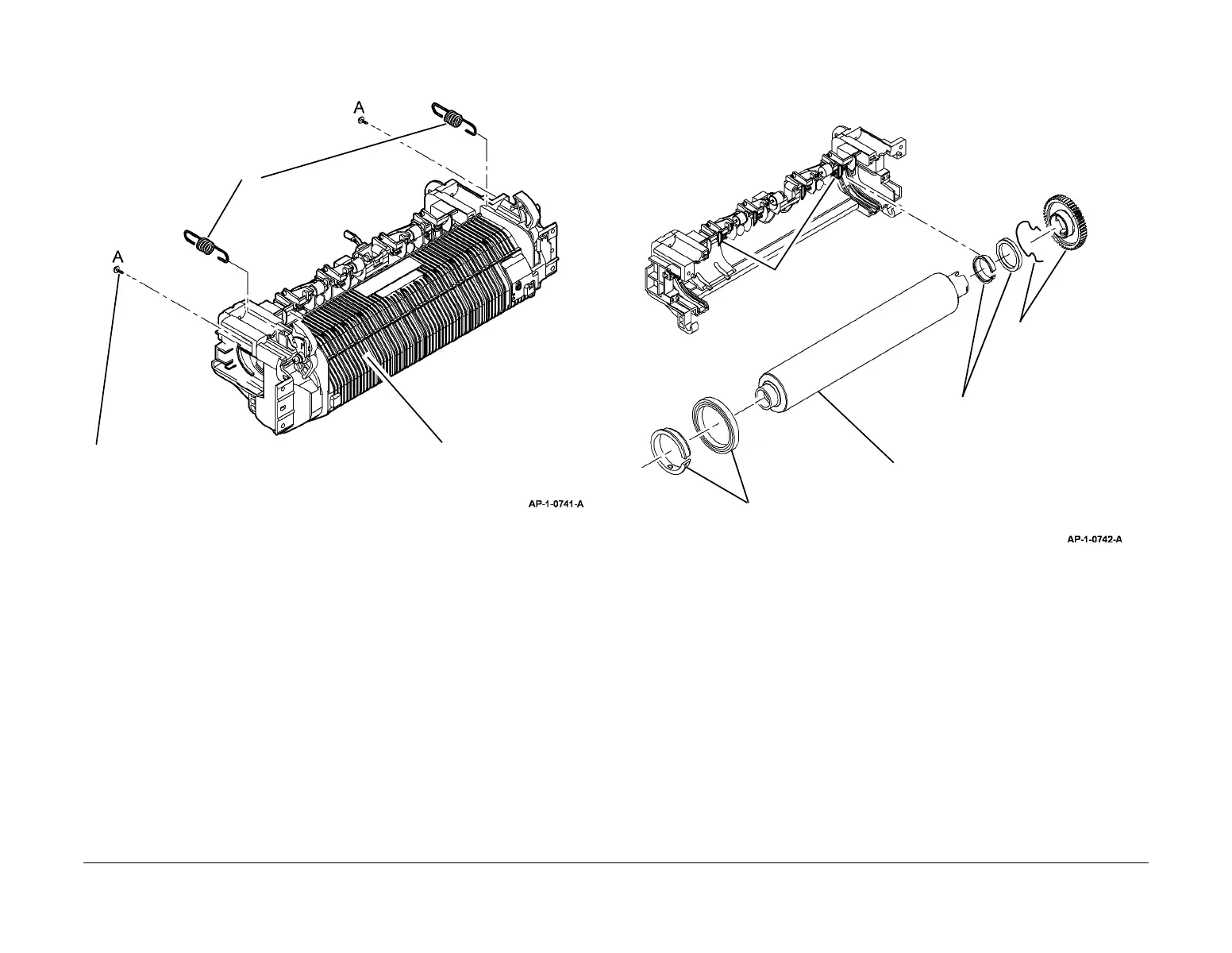

Figure 3 Separating the Fuser Assembly
CAUTION
Do not damage the Fuser Stripper Fingers when removing the Heat Roll Assembly.
5. Remove the Heat Roll Assembly and components (Figure 4).
Figure 4 Removing the Heat Roll Assembly
1
Remove 2 springs.
2
Remove the 2 screws
marked A.
3
Carefully separate the
fuser assembly.
1
Carefully remove the heat
roller assembly.
2
Remove the front bear-
ing, then the collar.
Stripper fingers
(4 off).
4
Remove the rear bearing, then
the collar.
3
Release the spring
clip, then remove the
drive roller.
