REP 10.7
Repairs and Adjustments
6. Prepare to remove the Pressure Roll bearings (Figure 5).

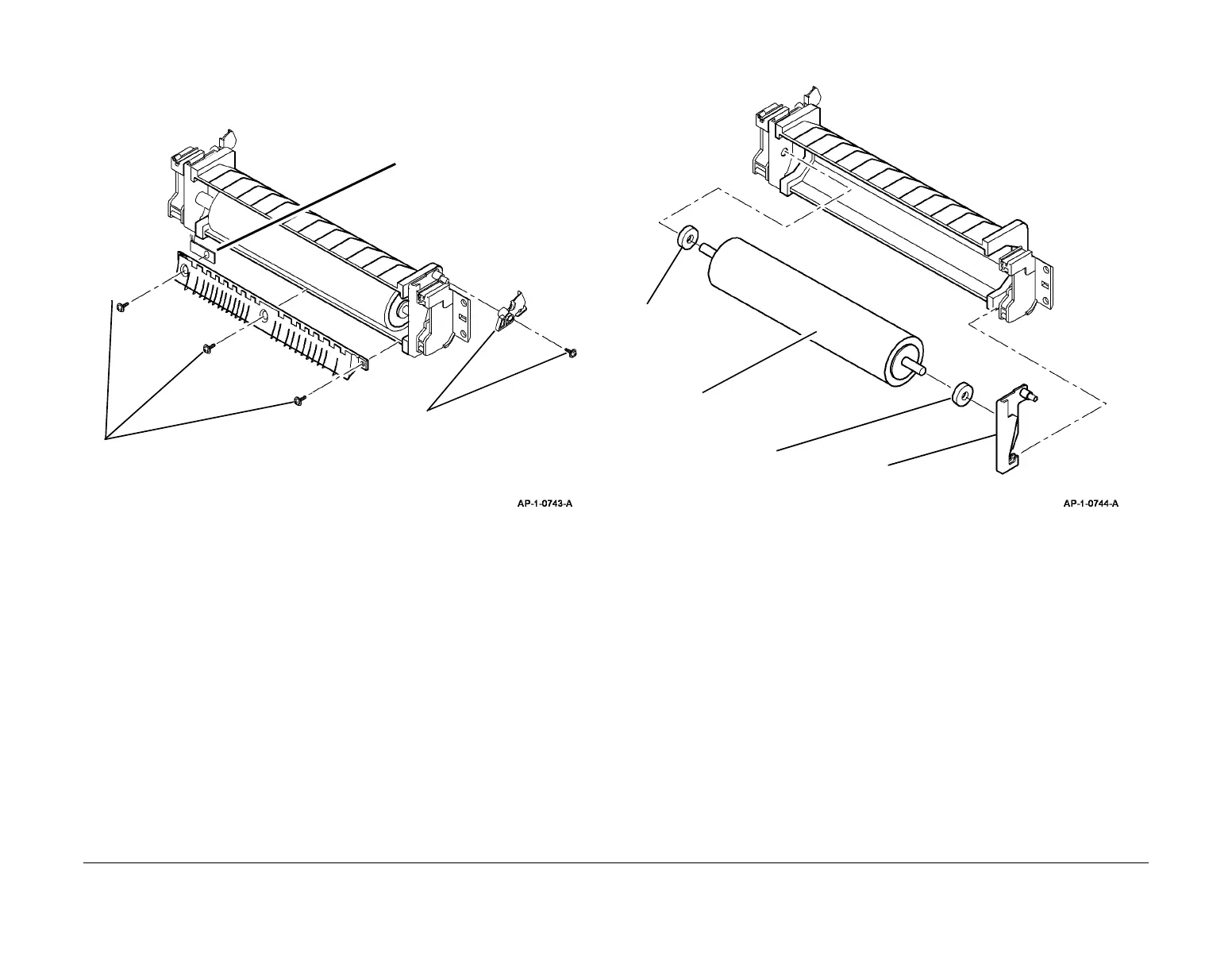

Figure 5 Preparing to Remove the Pressure Roll Bearings
7. Remove the Pressure Roll Bearings (Figure 6).
Figure 6 Removing the Pressure Roll Bearings
1
Remove 3 screws, then
the input guide.
2
Remove 1 screw, then the
front jam lever.
CAUTION
Do not misplace the
Static Eliminator.
1
Dislocate the Front
Bracket.
2
Remove the Front
Bearing.
3
Remove the
Pressure Roll.
4
Remove the Rear
Bearing.
