REP 10.7
Repairs and Adjustments
Replacement
CAUTION
Do not damage the fuser stripper fingers when reinstalling the heat roller assembly, refer to
Figure 4.
1. Reinstallation is the reverse of the Removal procedure.
2. Position the spring on the Front Jam Lever in the slot on the Fuser frame (Figure 7).

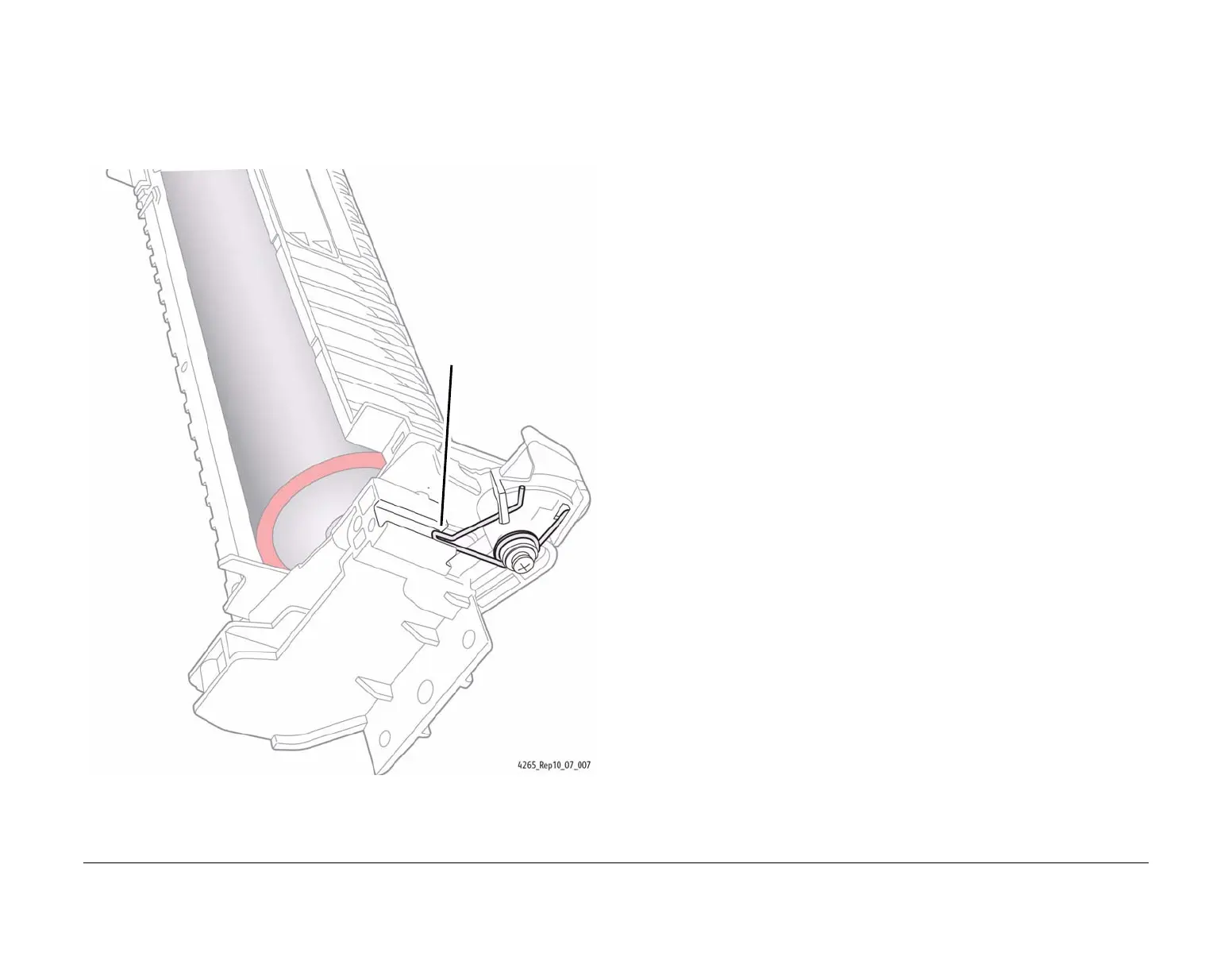

Figure 7 Positioning the Front Jam Lever Spring on the Fuser Frame
3. If a new heat roller assembly or pressure roller are installed, reset the HFSI count to zero.
Go to GP 16 High Frequency Service Items.
1
Position the spring on the
slot in the Fuser frame.
