Xerox WorkCentre 4150 Service Manual

January 2016
4-171
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 12.5
Repairs and Adjustments
3. Remove the Compiler Assembly (Figure 2).

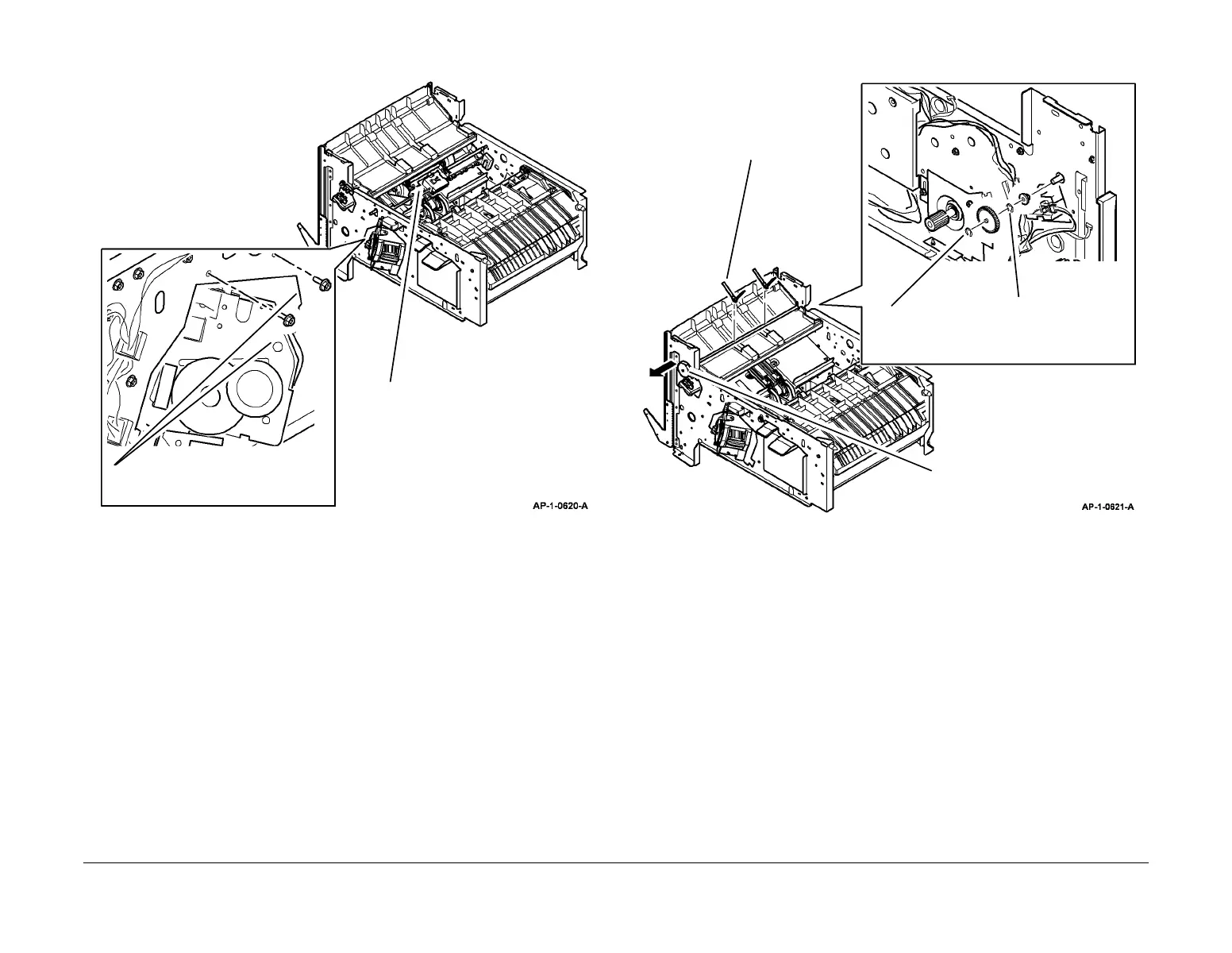

Figure 2 Removing the Compiler Assembly
4. Remove the Exit Shaft (Figure 3).
Figure 3 Removing the Exit Shaft
5. Remove the Upper Compiler Cover, PL 12.30 Item 3.
6. Remove the Left Cover, refer to REP 12.2.
1
Remove 2 screws.
2
Remove the Compiler
Assembly.
2
Remove the E-clip,
then the gear.
3
Remove the E-clip,
then the bearing.
1
Detach both Exit
Paddles.
4
Remove the Exit Shaft.
