January 2016
4-172
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 12.5
Repairs and Adjustments
7. Remove the front or rear Jogger Assembly (Figure 4). NOTE: Figure 4 shows the removal of the rear Jogger Assembly. The procedure for
removing the front jogger or rear Jogger Assembly is identical.

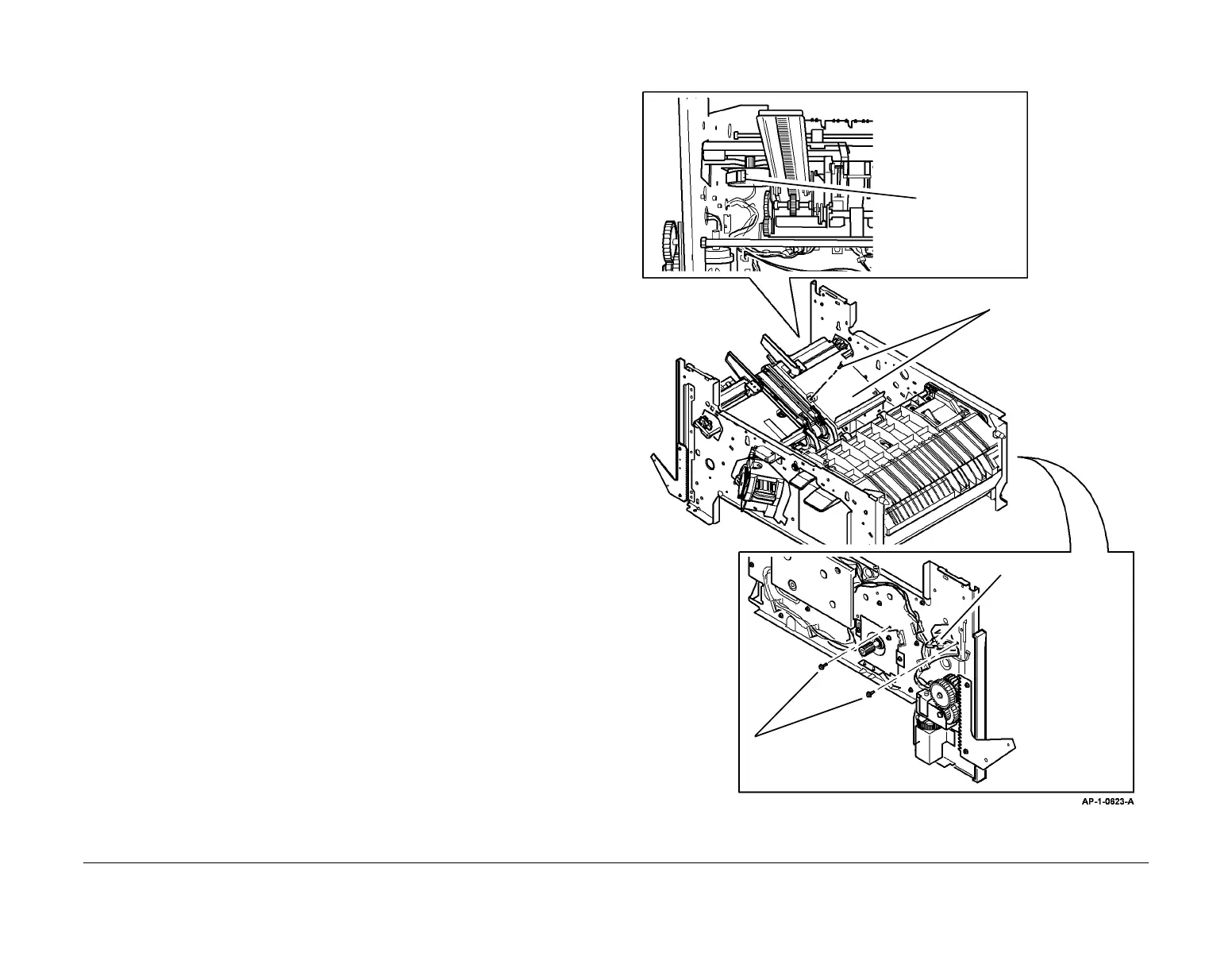

Figure 4 Removing the Front/Rear Jogger Assembly
1
Remove 2 screws.
2
Disconnect the jogger
home sensor.
3
Disconnect the
Jogger Motor.
4
Remove 1 screw, then
the Jogger Assembly.
