Paper Jams
Xerox WorkCentre 5016/5020 User Guide 106

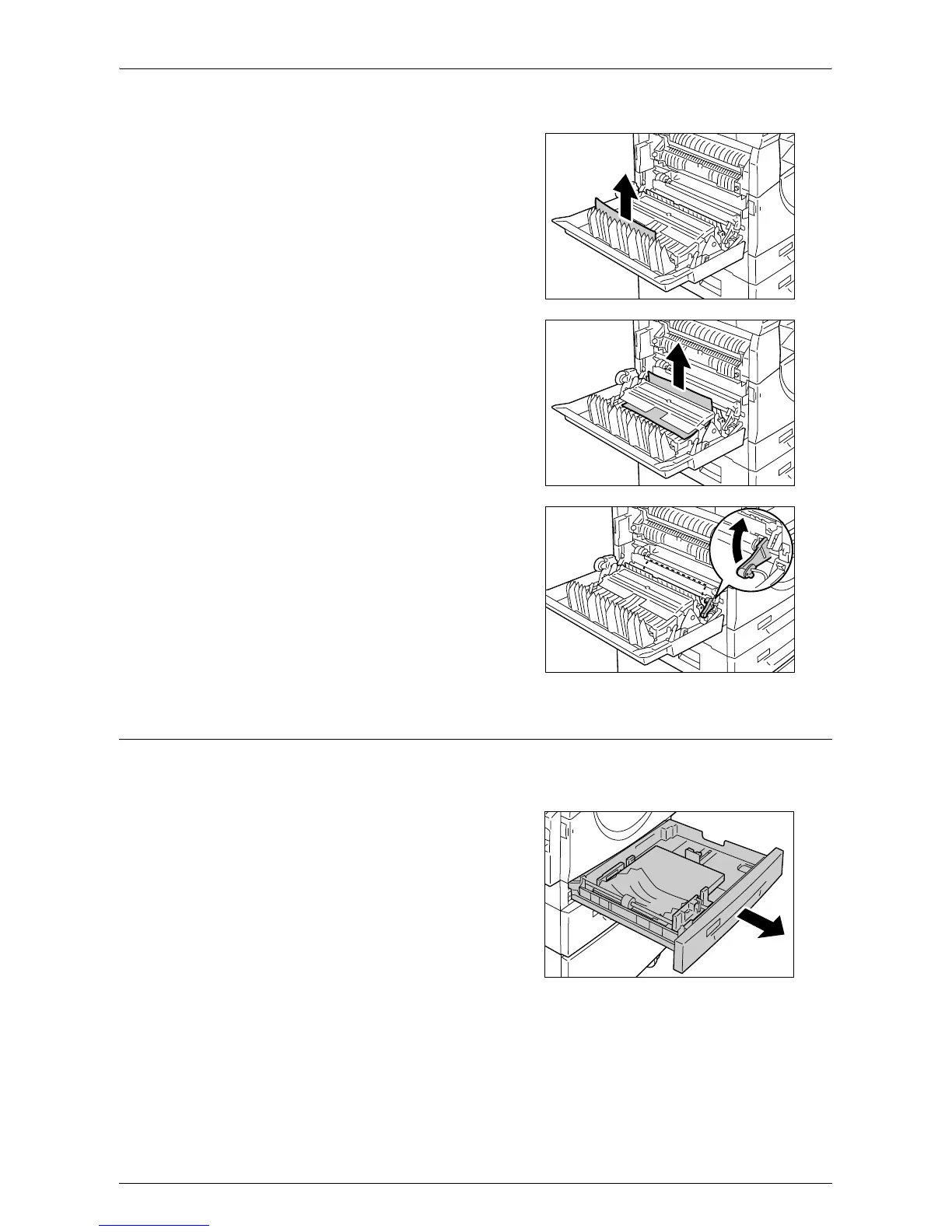

4. Remove the jammed paper.
Note • Do not leave any torn pieces of paper inside the machine.
1) If the paper is jammed in the
location shown in the diagram,
remove the jammed paper pulling
upwards.
2) If the paper is jammed in the
location shown in the diagram,
remove the jammed paper pulling
upwards.
3) If the paper is jammed in the
location shown in the diagram, and
if the edges of the jammed paper is
not accessible to be pulled out, pull
up the green lever, and remove the
jammed paper.
5. Gently close the Left Side Cover,
Access Cover 2, and Access Cover 1.
C1: Paper Jam in Tray 1
The following procedure describes how to clear paper jams in Tray 1 when an error
code [C1] appears in the Display.
1. Pull out Tray 1 toward you.
Important • Identify the location of the paper
jam first. Randomly pulling out the
trays may tear the jammed paper,
and any torn pieces of paper
remaining in the machine may
eventually cause the machine to
malfunction.
2. Remove the jammed paper.
Note • Do not leave any torn pieces of
paper inside the machine.
3. Push Tray 1 gently back into position.

Xerox WorkCentre 5020 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Print Resolution	Up to 600 x 600 dpi
Max Paper Size	A3
Standard Paper Capacity	250 sheets
Bypass Tray Capacity	100 sheets
Duplex Printing	Manual
Copy Speed	Up to 20 cpm
First Page Out Time (Copying)	Less than 10 seconds
Scan Resolution	Up to 600 x 600 dpi
Operating System Compatibility	Windows, Mac OS
Automatic Document Feeder	50 sheets
Connectivity	USB 2.0
Functions	Print, Copy
Reduction / Enlargement	25% - 400%
Scan Destinations	USB, Email
Fax Transmission Speed	33.6 kbps
First Page Out Time (Printing)	Less than 8 seconds
