Replacing Consumables
Xerox WorkCentre 5016/5020 User Guide 114

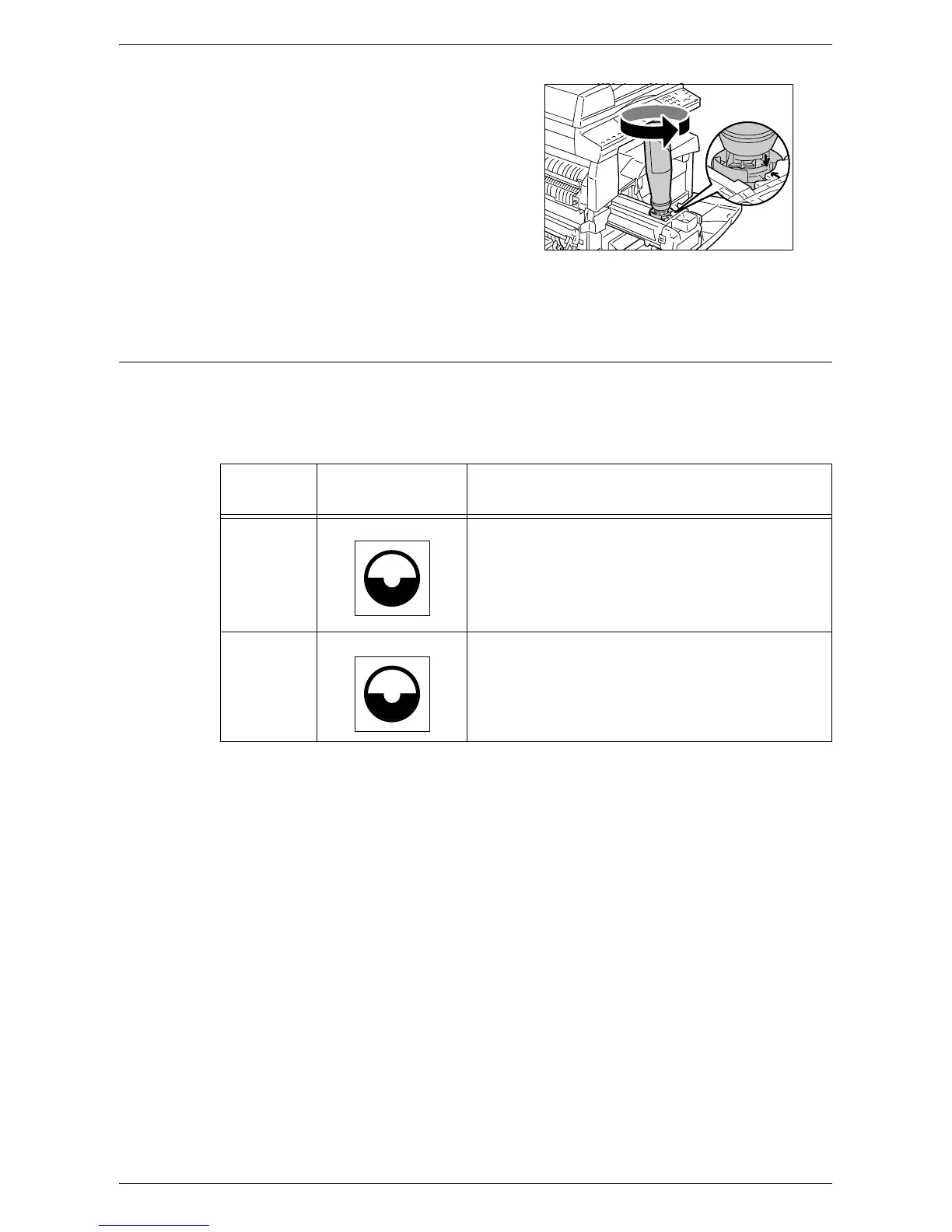

10. Turn the toner bottle around in a
counter-clockwise direction until the
two orange arrows are aligned, and
remove the toner bottle from the Drum
Cartridge.
Note • Follow the instruction given on the
packaging for recycling the empty
toner bottle.
11. Push in the Drum Cartridge until it locks into position.
12. Close the Left Side Cover and the Front Cover.
Replacing the Drum Cartridge
The machine comes with a Drum Cartridge. The machine will alert by lighting up or
flashing the Drum Cartridge indicator on the Machine Diagram (mimic) before the Drum
Cartridge reaches the end of its life. Follow the instructions to order and replace with a
new Drum Cartridge. The machine will stop when the Drum Cartridge ends its life.
* Based on the following conditions: (1) 1-sided copying (not printing), (2) average number of pages
copied at a time: 4 pages, (3) paper size: A4 LEF, (4) paper tray: Tray 1, (5) output tray: Output Tray.
This value is an estimate and will also be affected by other machine-usage conditions, such as how
often the machine is switched on and off. The degradation of image quality may occur even before the
machine stops when the Drum Cartridge reaches the end of its life.
Important • The use of Drum Cartridges that are not recommended by Xerox may impair quality and
performance of the machine. Use only Drum Cartridges specifically recommended by
Xerox.
Note • Do not expose Drum Cartridges to direct sunlight or strong indoor fluorescent light. Do not
touch or scratch the surface of the Drum Cartridge. Doing so may lower print quality.
• Replace the Drum Cartridge while the machine is switched on.
Error Code
Machine Diagram
(mimic)
Description/Remedy
- Lights up The Drum Cartridge is near the end of its life. Prepare
a new Drum Cartridge for replacement.
Note • After the Drum Cartridge indicator on the
Machine Diagram (mimic) lights up, the
machine allows you to copy/print approximately
5,000 pages.*
J6 Flashes The Drum Cartridge is at the end of its life. It needs to
be replaced with a new Drum Cartridge.
