Xerox WorkCentre 5020 User Manual

Printing Procedure
Xerox WorkCentre 5016/5020 User Guide 81

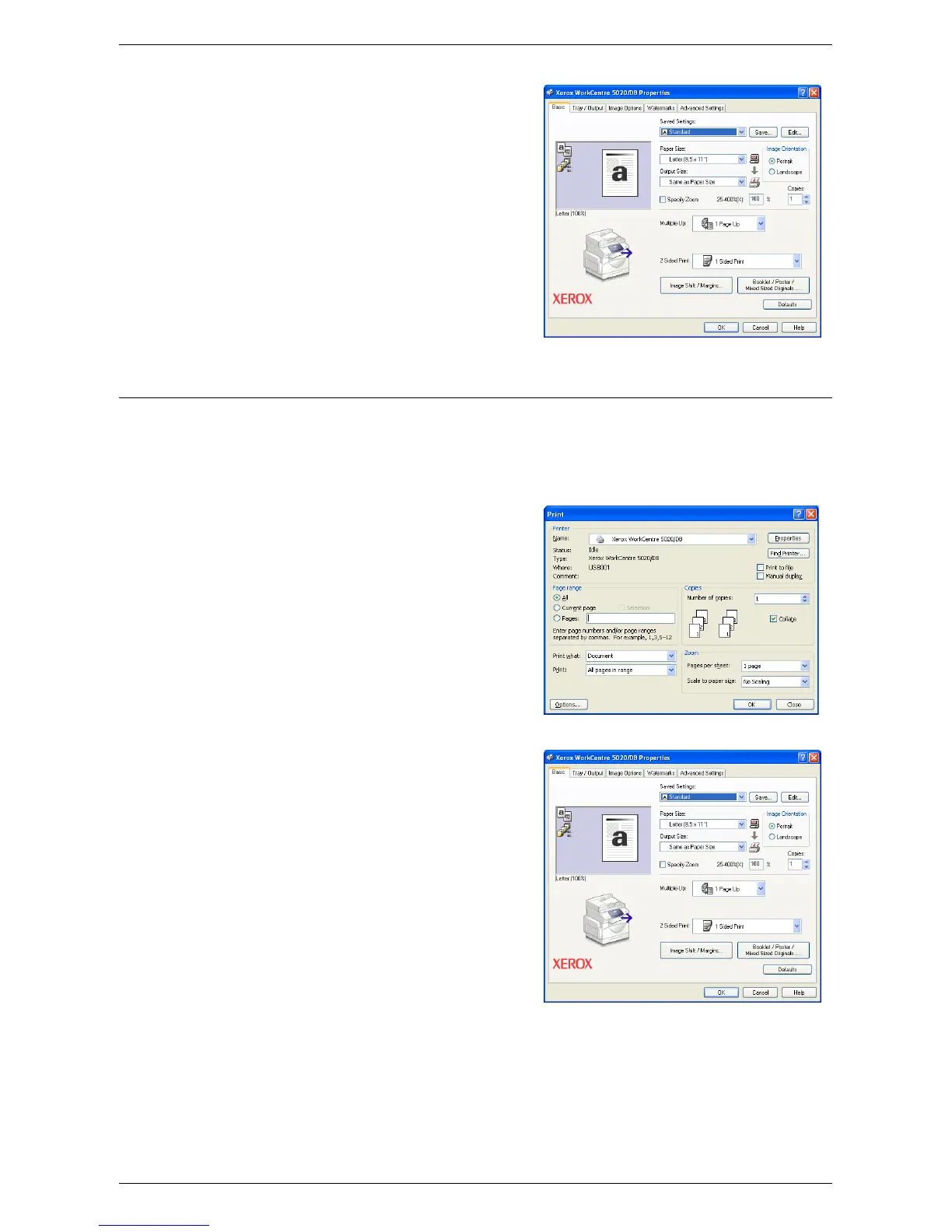

The [Properties] dialog box appears.
3. Specify features as necessary in the
[Properties] dialog box.
4. Click [OK] to save the specified
settings.
The [Properties] dialog box closes.
5. Click [OK] on the [Print] dialog box.
The [Print] dialog box closes, and the
print job starts.
Printing on the Custom Size Paper
The following procedure describes how to print on a custom sized paper.
1. Select [Print] from the menu on the application.
2. Select the machine name in [Name].
3. Click [Properties].
The [Properties] dialog box appears.
4. Select the document size in [Paper
Size].
5. Select the desired custom paper size in
[Output Size].
Note • The custom paper sizes that
appear under [Output Size] have
been registered in advance. For
information on how to register the
custom paper size, refer to
"Specifying the Custom Paper
Size" (P.79).
6. Specify other features as necessary.
7. Click [OK] in the [Properties] dialog box to save specified settings.
The [Properties] dialog box closes.
8. Click [OK] in the [Print] dialog box.
The [Print] dialog box closes, and the print job starts.

Xerox WorkCentre 5020 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Print Resolution	Up to 600 x 600 dpi
Max Paper Size	A3
Standard Paper Capacity	250 sheets
Bypass Tray Capacity	100 sheets
Duplex Printing	Manual
Copy Speed	Up to 20 cpm
First Page Out Time (Copying)	Less than 10 seconds
Scan Resolution	Up to 600 x 600 dpi
Operating System Compatibility	Windows, Mac OS
Automatic Document Feeder	50 sheets
Connectivity	USB 2.0
Functions	Print, Copy
Reduction / Enlargement	25% - 400%
Scan Destinations	USB, Email
Fax Transmission Speed	33.6 kbps
First Page Out Time (Printing)	Less than 8 seconds
