Machine Components
Xerox WorkCentre 5016/5020 User Guide 18

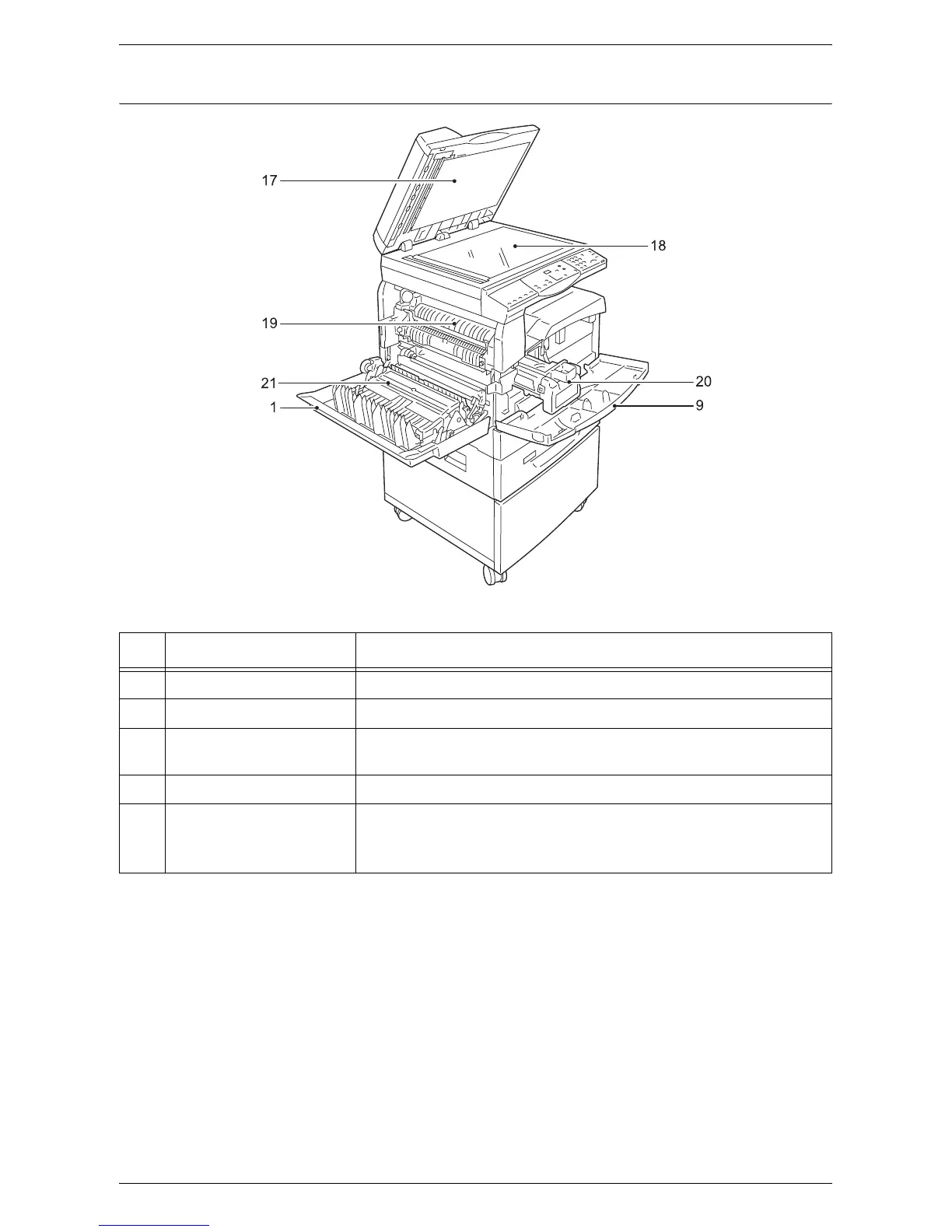

Inside View
No. Component Function
17 Document Cover Close this cover when scanning a document on the Document Glass.
18 Document Glass Place a document here, face down.
19 Fuser Unit Fuses toner onto the paper by applying heat and pressure. Do not touch
this unit. It may become extremely hot.
20 Drum Cartridge Contains toner and photoconductor used to transfer the toner.
21 Duplex Module Copies and prints on both sides of paper.
Note • The Duplex Module may not be fitted depending on the machine
model in use.
