Xerox WORKCENTRE 7425 - Page 174

Maintenance
WorkCentre 7425/7428/7435
User Guide
174

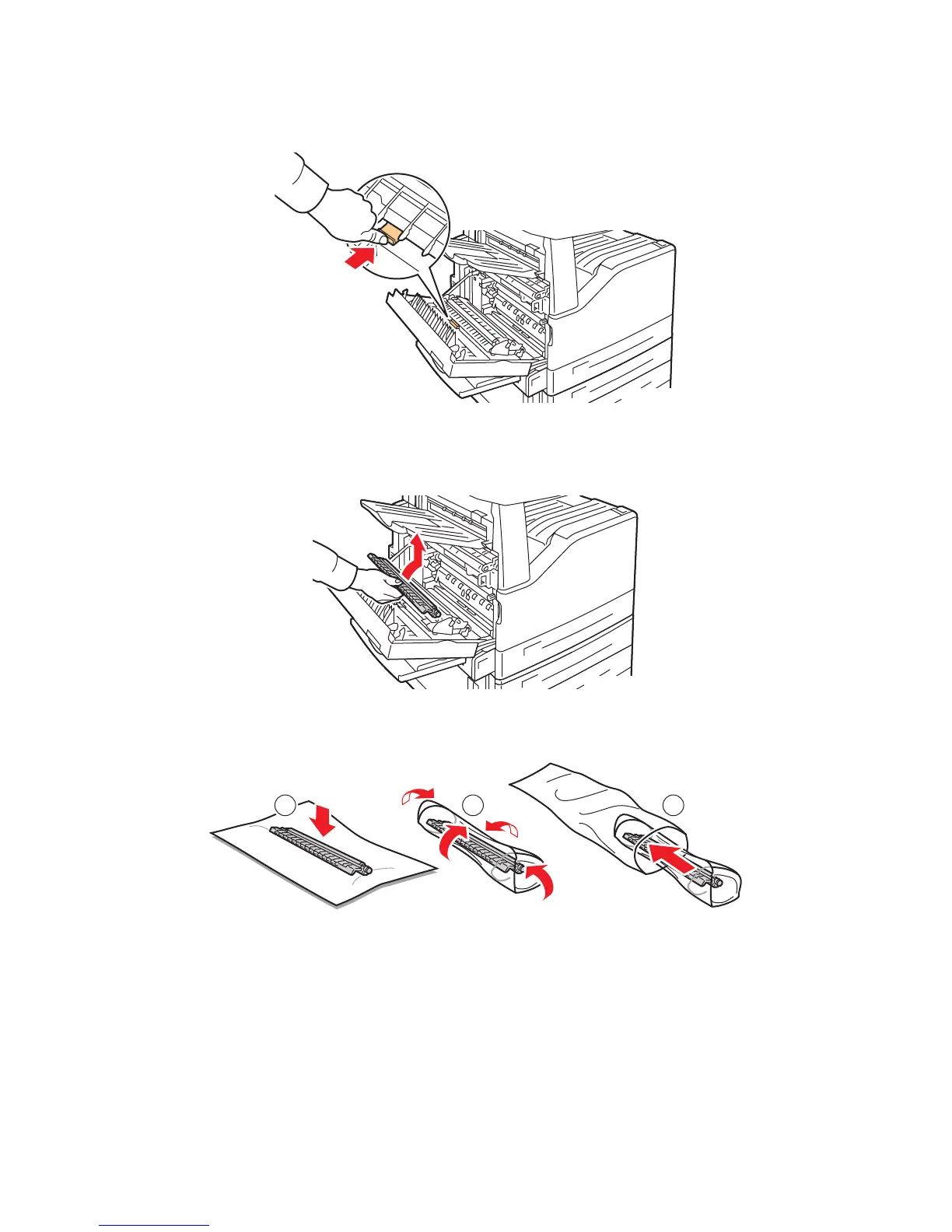

3. Push the orange lever in the direction shown.
4. Lift the used transfer roller out of the printer.
5. Do not touch any toner adhering to the transfer roller.
6. Place the used transfer roller in the plastic bag.
wc74xx-178
wc74xx-179
wc74xx-182
1 2
3
