Replacing the Transfer Roller
WorkCentre 7425/7428/7435
User Guide
175

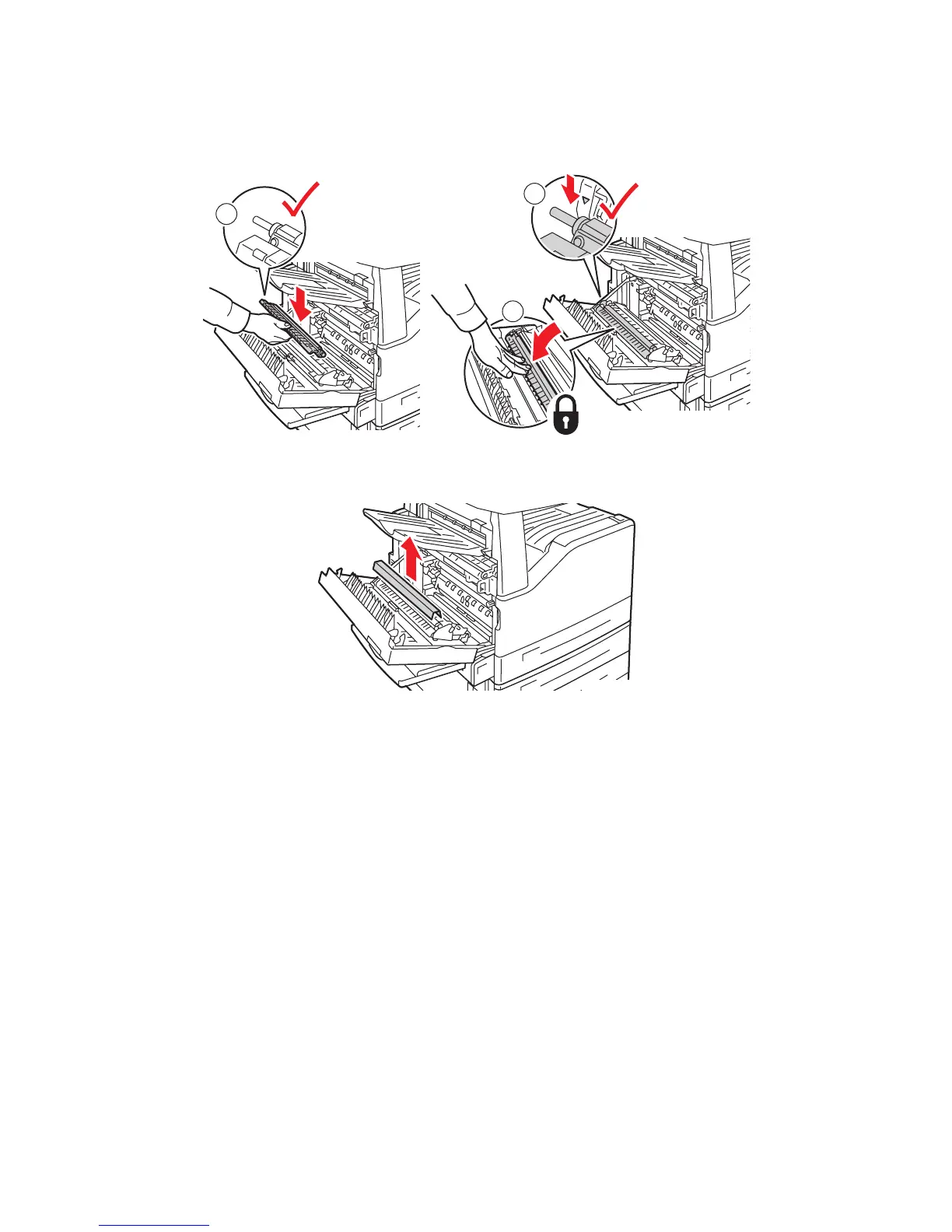

7. Place the new transfer roller in the printer as shown. Press down until the transfer roller clicks into
place.
8. Remove the protective cover from the transfer roller.
9. Close the side cover.
wc74xx-180
1
2
3
wc74xx-181
