Chapter 4:
FPGA Configuration Options
R
When PROM formatting is complete, the iMPACT software presents the present settings
by showing the PROM, the select FPGA bitstream(s), and the amount of PROM space
consumed by the bitstream. Figure 4-19 shows an example for a single XC3S500E FPGA
bitstream stored in an XCF04S Platform Flash PROM.

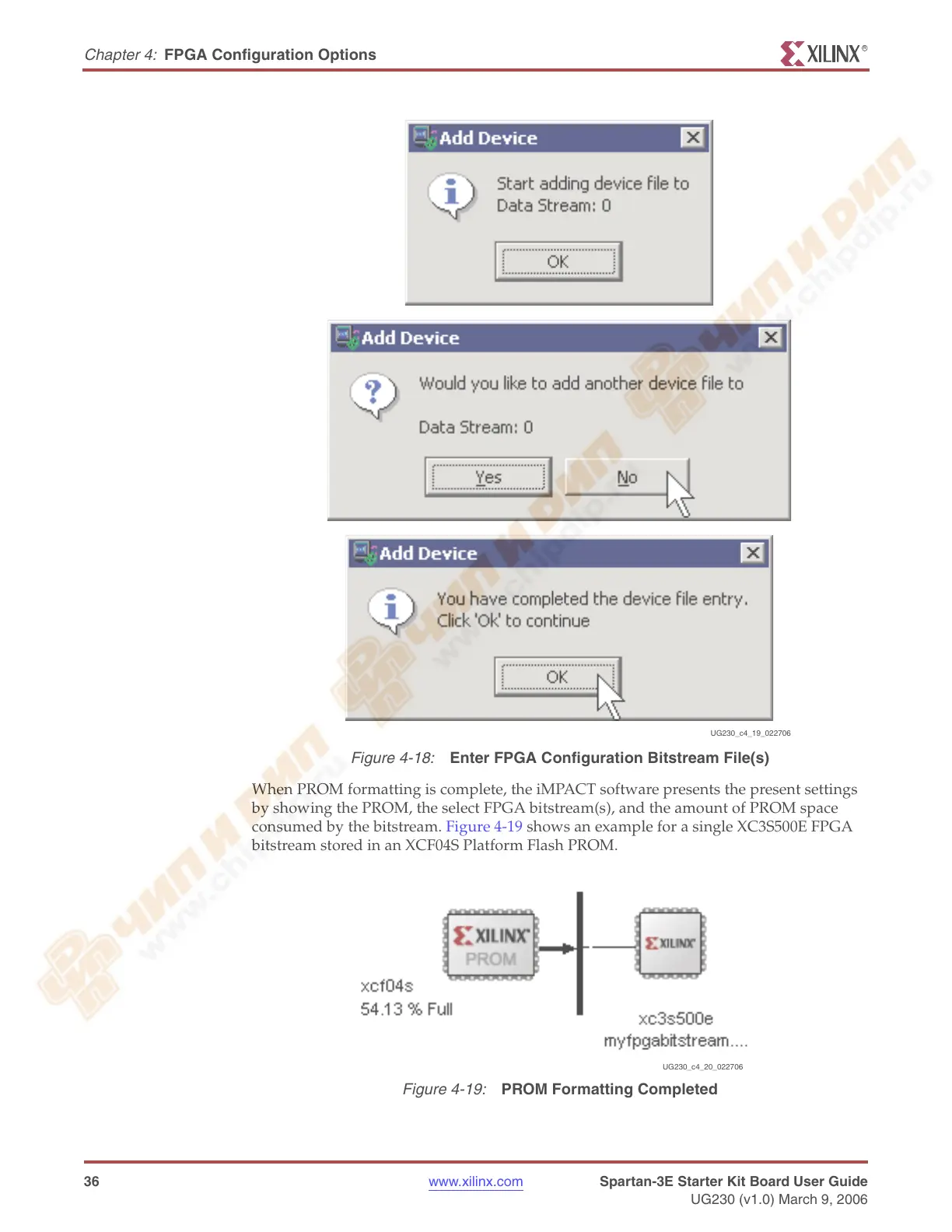

Figure 4-18:
Enter FPGA Configuration Bitstream File(s)
Figure 4-19:
PROM Formatting Completed
UG230_c4_19_022706
UG230_c4_20_022706
To Next Page
