Configuring from SPI Flash
R
To generate the actual PROM file, click Operations Æ Generate File as shown in
Figure 12-13.
As shown in Figure 12-14, the iMPACT software indicates that the PROM file was
successfully created. The PROM Formatter creates an output file based on the settings
shown in Figure 12-8. In this example, the output file is called MySPIFlash.mcs.

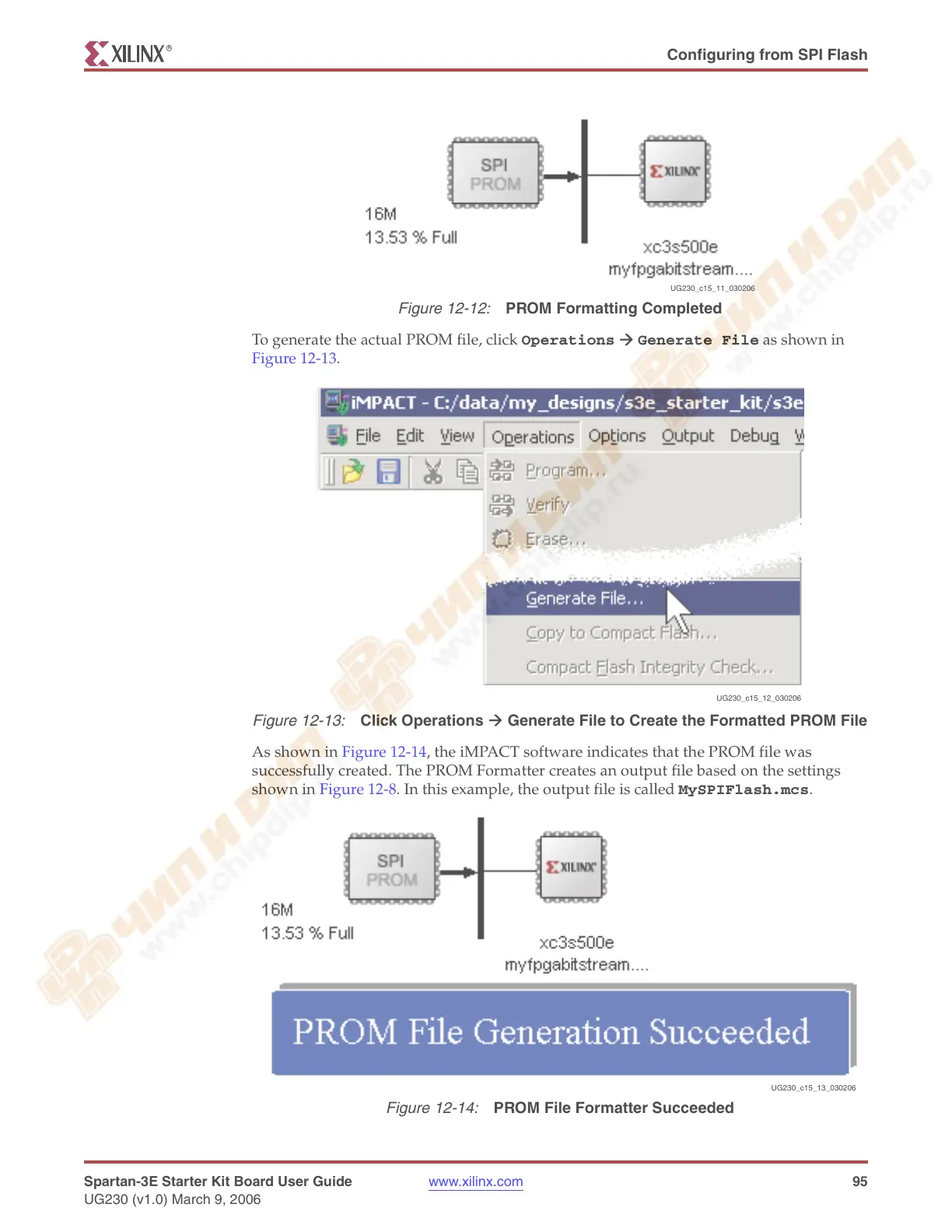

Figure 12-12: PROM Formatting Completed
Figure 12-13: Click Operations Æ Generate File to Create the Formatted PROM File
Figure 12-14: PROM File Formatter Succeeded
UG230_c15_11_030206
UG230_c15_12_030206
UG230_c15_13_030206
