Xinje DS3 series servo User Manual

DS3 series servo manual
9

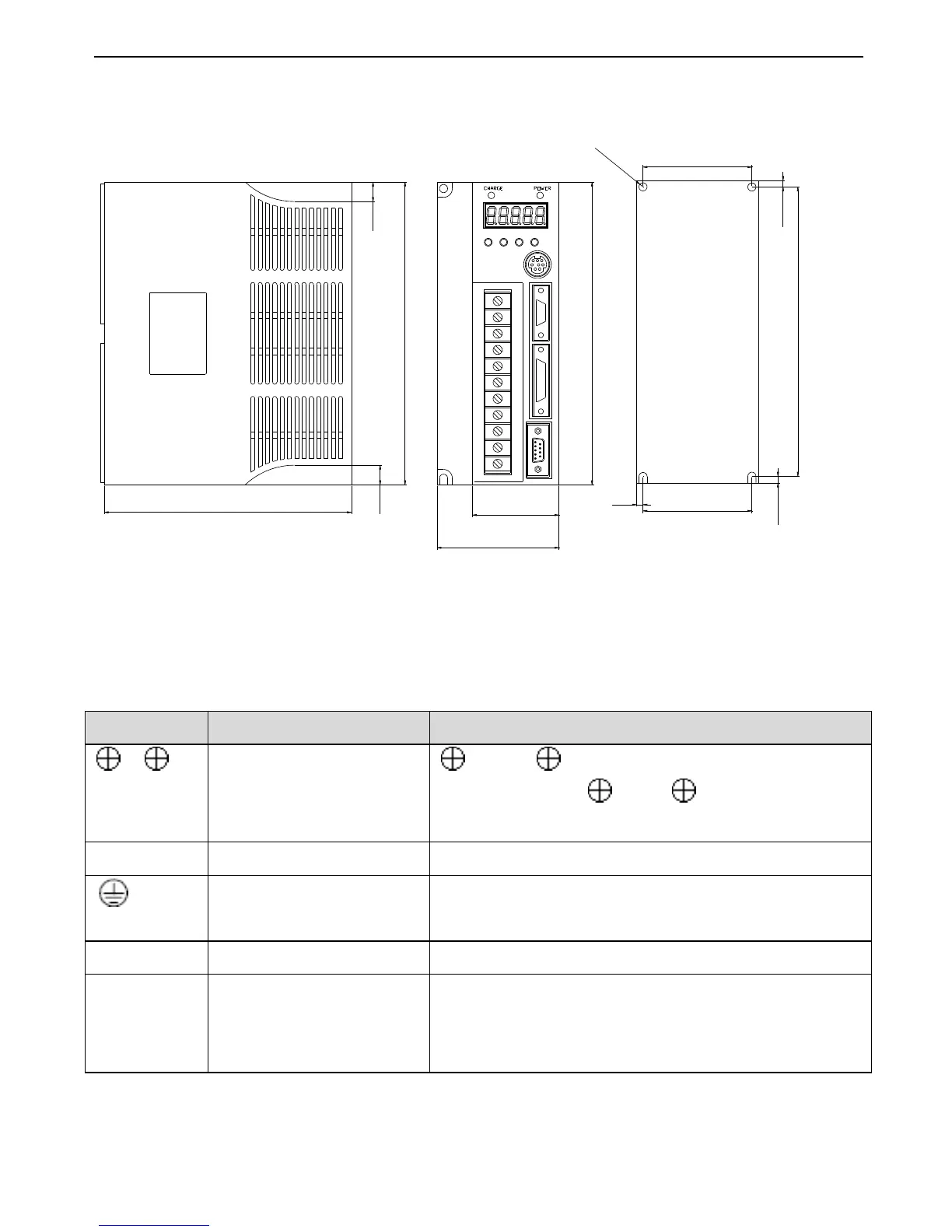

2. Servo drive Unit: mm
152
12
12
186
186
53
75
67
67
177.7
4
R2.5
4.1
4.2
►► Wiring
1. Main circuit terminals
Terminal Function Explanation
1, 2
connect to the DC
reactor
1 and 2 are shorted together. Connect
reactor between 1 and 2 to suppress high
harmonics
R, S, T Power supply input 3-phase or single phase 200~240V, 50/60Hz
Ground Connect to the ground terminal of power supply
and motor and ground
U, V, W Connect to the motor Connect to the motor
P+, PB Connect to the
regenerative braking
resistor
Connect regenerative braking resistor between P+
and PB
Notes: connect to any of the 2 terminals among R, S, T if the power supply is single phase.
