Xinje DS3 series servo User Manual

DS3 series servo manual
7

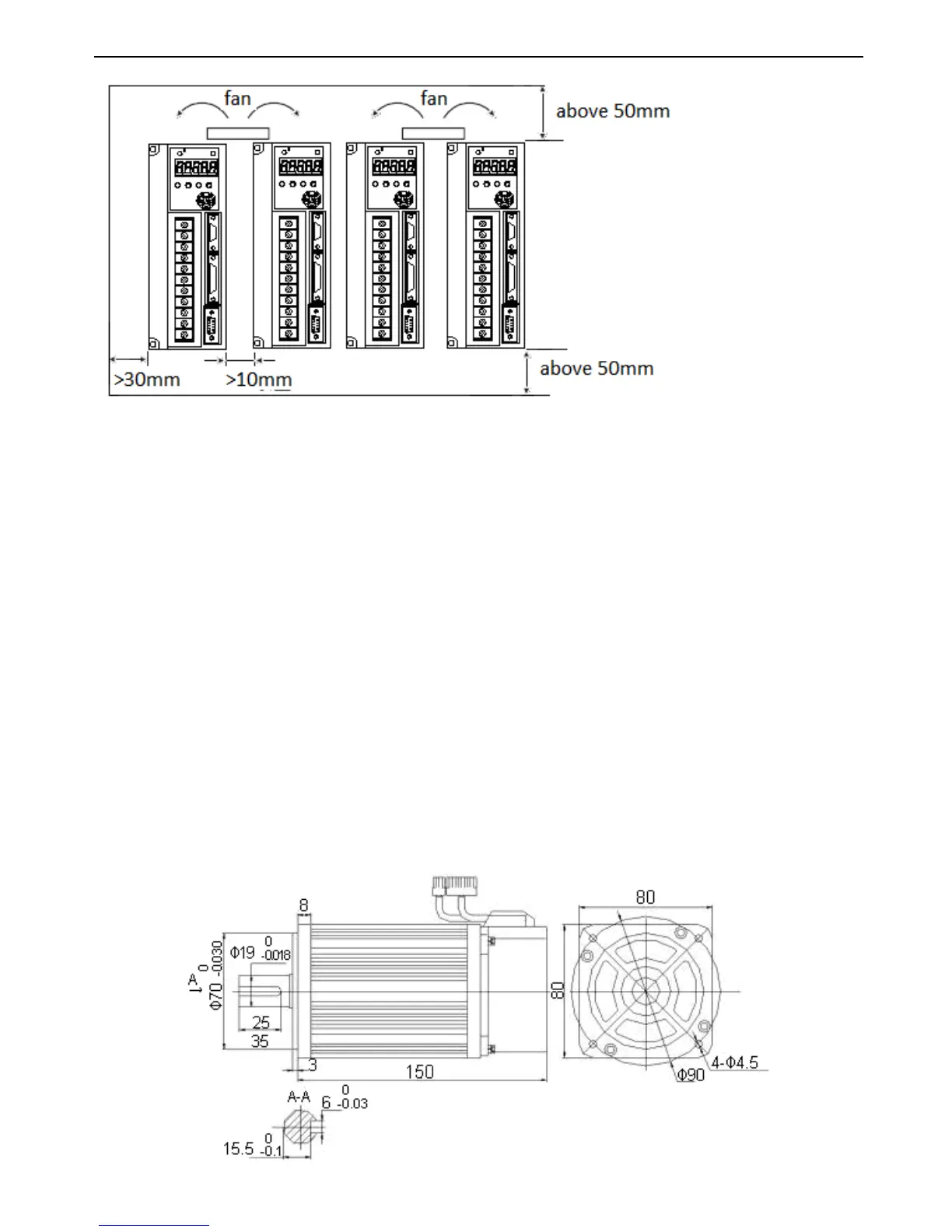

Direction of servo drive
The front side must face to the operator, and be vertical to the wall.
Ambient in the control cabinet:
 Temperature: 0～50 ℃
 Humidity: below 90% RH
 Vibration: 4.9m/s
2
 No freeze and condensation
 Using temperature: 50 ℃
►► Dimension
1. Servo motor
(1) MS-80ST-M02430□□-20P7 installation dimension Unit: mm

Xinje DS3 series servo Specifications

General

Communication	RS485, CANopen
Control Mode	Position control, Speed control, Torque control
Encoder Type	Incremental encoder
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overload, Encoder fault
Rated Power	0.1kW to 7.5kW (depending on model)
Series	DS3 series
