Xinje DS3 series servo User Manual

DS3 series servo manual
18

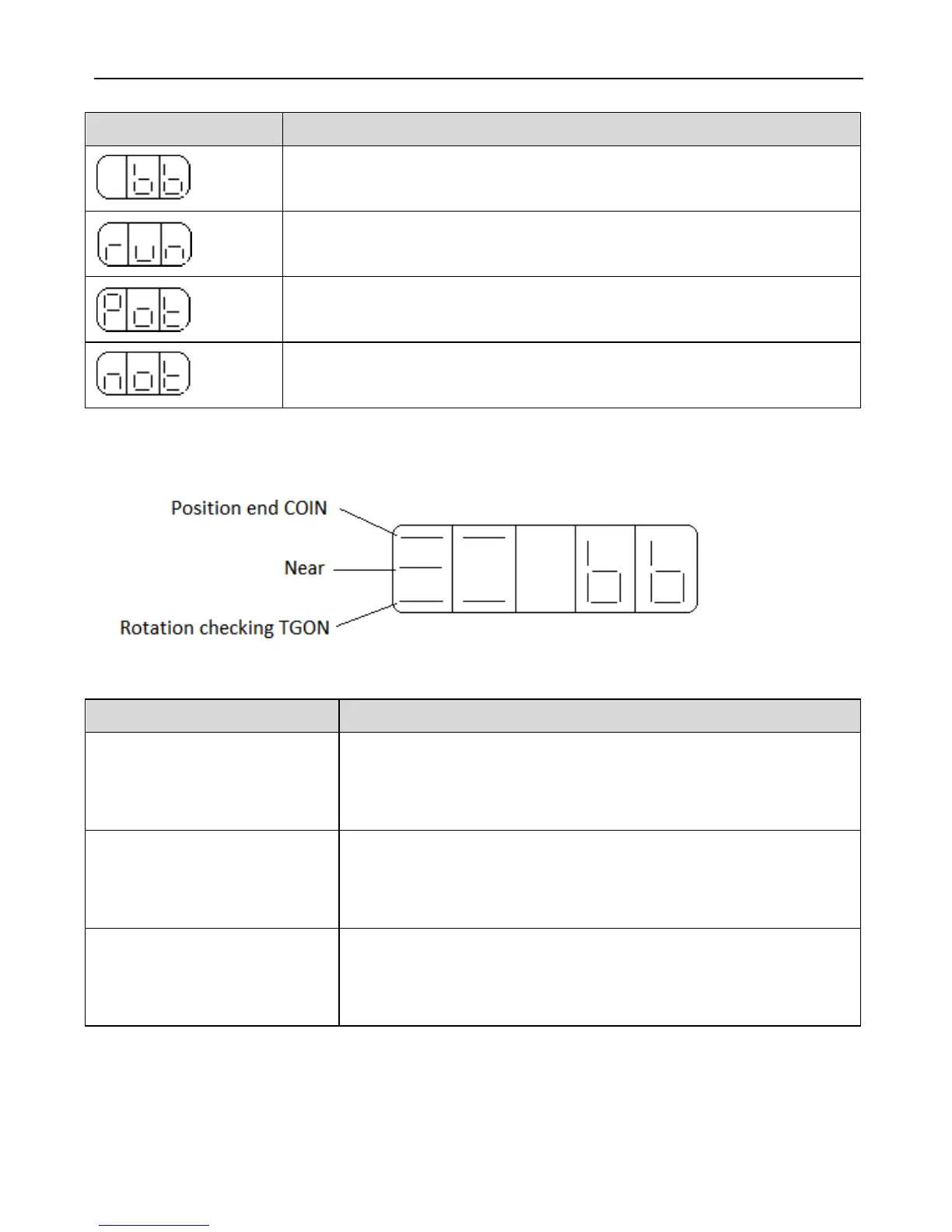

Code content
Code Content
Sleep mode
Servo OFF state (motor is not power on)
Running
Servo enable state (motor is power on)
Forward suppression state
P-OT OFF state. Refer to chapter 4-2-2
Reverse suppression state
N-OT OFF state. Refer to chapter 4-2-2
Position control
Bit display content
Bit data Content
Position end (/COIN) In position control, ON when set position is equal to actual
position
Position range: P5-00 (unit: command pulse)
Near (/NEAR) In position control, ON when set position is equal to actual
position
Near signal range: P5-04
Rotation checking (/TGON) ON when motor speed is higher than rotation checking
speed
Rotation checking speed: P5-02 (unit: rpm)
