Xinje DS3 series servo User Manual

DS3 series servo manual
17
parameter number in this group
Alarm state E-XXX: XXX means alarm code
2. Running state
Display the servo state with LED bit and code in state display mode.
 Select the display state
Power on and enter the state display. If you cannot see the state display, press
STATUS/ESC button.
 The content of state display
It is different in speed/torque mode and position mode.

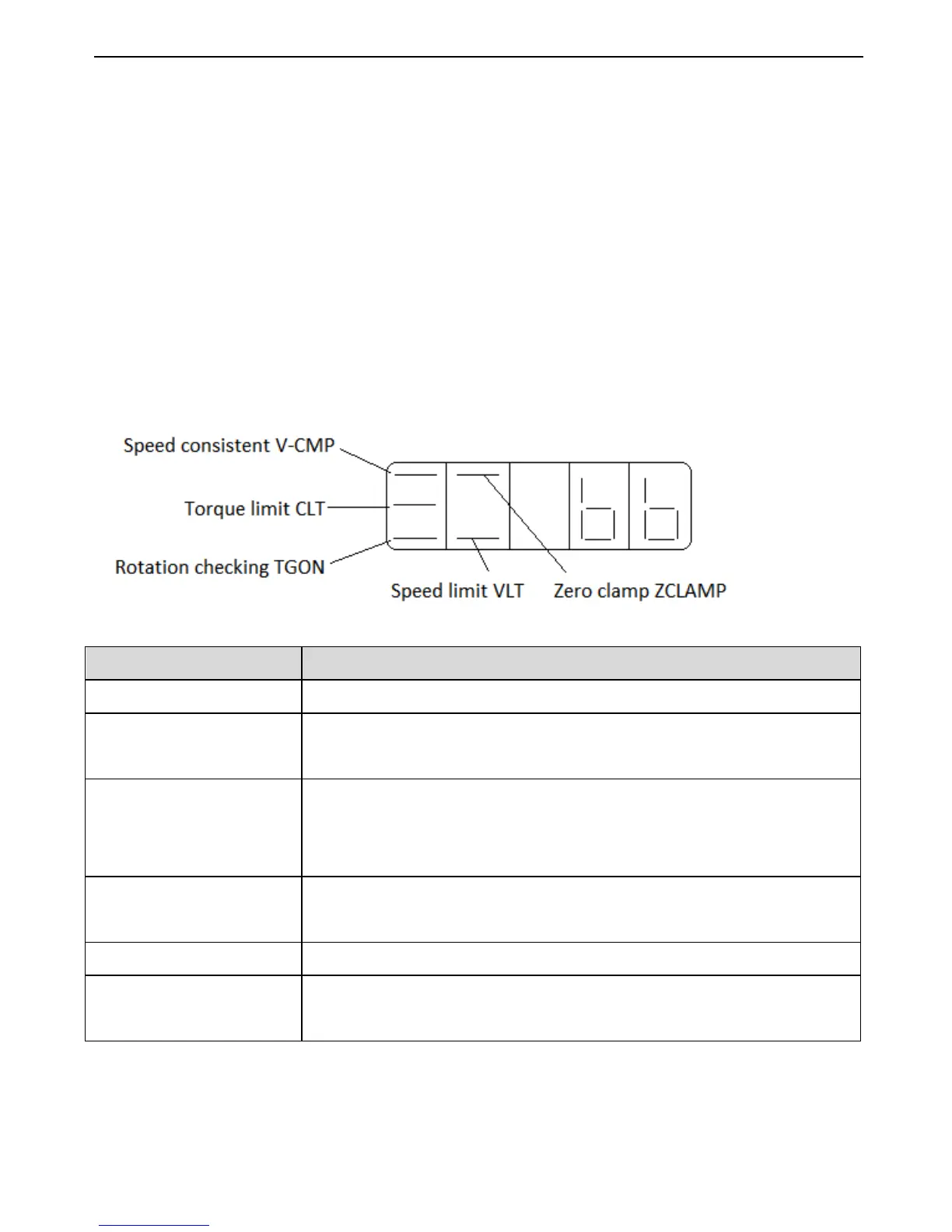

Speed/torque mode:
Bit display content:
Bit data Content
Servo enable (S-ON) ON when servo enable
Speed consistent
(/V-CMP)
ON when the motor speed is equal to command speed.
Speed consistent range: P5-03 (unit: rpm)
Torque limit (/CLT) ON when the torque is larger than setting value in speed control
Forward torque limit: P4-02
Reverse torque limit: P4-03
Rotation checking
(/TGON)
ON when motor speed is larger than rotation checking speed
Rotation checking speed: P5-02 (unit: rpm)
Zero clamp (/ZCLAMP) ON when zero clamp is effective
Speed limit (/VLT) ON when speed is larger than setting value in torque control
Torque control speed limit: P4-07
