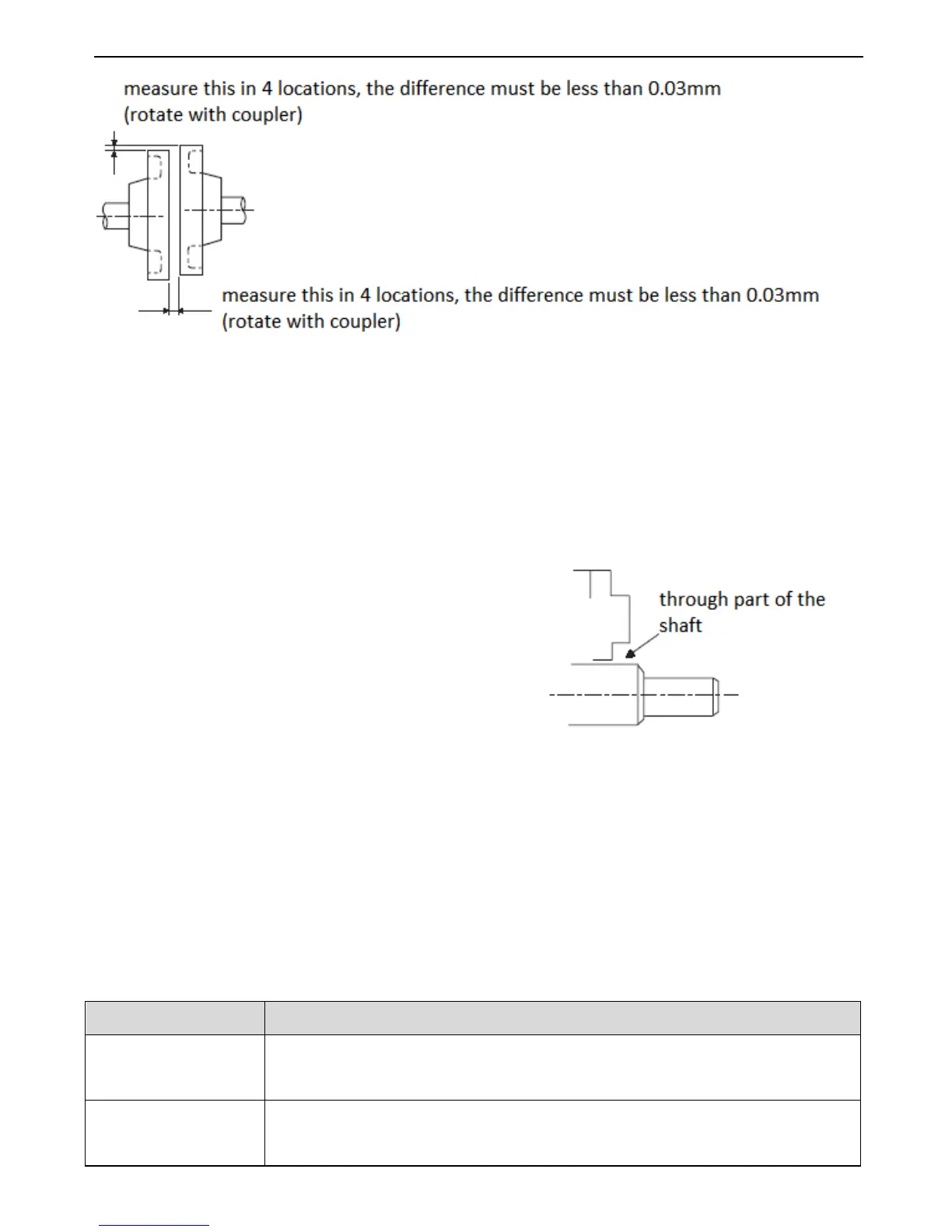

If the concentricity is not enough, it may cause vibration and damage the shaft.
Do not impact the motor shaft when install the coupler. Otherwise the monitor on the other
end of loader shaft will be broken.
4) Installation direction
MS series servo motor can be installed vertical or horizontal.
5) The solution to prevent from water or oil drops
6) The tension of the cables
Do not make large tension for the cable especially for the 0.2mm
2
, 0.3mm
2
cables.
2. Servo drive
DS3 series servo drive is base-type. Please install it correctly otherwise there will be error.
1) Storage temperature
Store the servo drive in the range of -20~+85 ℃.
2) Installation location
Install the drive as the following item:
Location Notes
Install in the
control panel
Design the control panel size, servo configuration and cooling mode,
to decrease the ambient temperature under 50
℃
If close to the
heater
to decrease the ambient temperature under 50
℃
Seal the through part of the shaft. Please
order the motor with oil sealed.

Xinje DS3 series servo Specifications

General

Communication	RS485, CANopen
Control Mode	Position control, Speed control, Torque control
Encoder Type	Incremental encoder
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overload, Encoder fault
Rated Power	0.1kW to 7.5kW (depending on model)
Series	DS3 series
