Xinje DS3 series servo User Manual

DS3 series servo manual
4
CN2: connect the encoder.
CN1: command input, sequence I/O signal
Power and servo motor terminals: to connect the power supply and power cable of servo
motor.
COM2: connect with PLC, HMI, ect.
►► Installation
1. Servo motor
MS series servo motor can be installed vertical or horizontal. If it is installed unsuitable or is in
wrong location, the motor life will be shortened.
1) Storage temperature
Please store the motor in the range of -20~+60℃
2) Installation location
MS series servo motor should be installed under below location:
 Indoor, no corrosive, flammable, explosive gas
 Good ventilation, less dusts, humidity
 Ambient temperature is in the range of 0~50 ℃
 Relative humidity is in the range of 20%~90% RH, no condensation
 Easy to clean and check
3) Concentricity
Please use coupler when connect to the machine, make the shaft center of motor and
machine on the same line. The installation of motor should be accord with the below
requirements.
Notes:

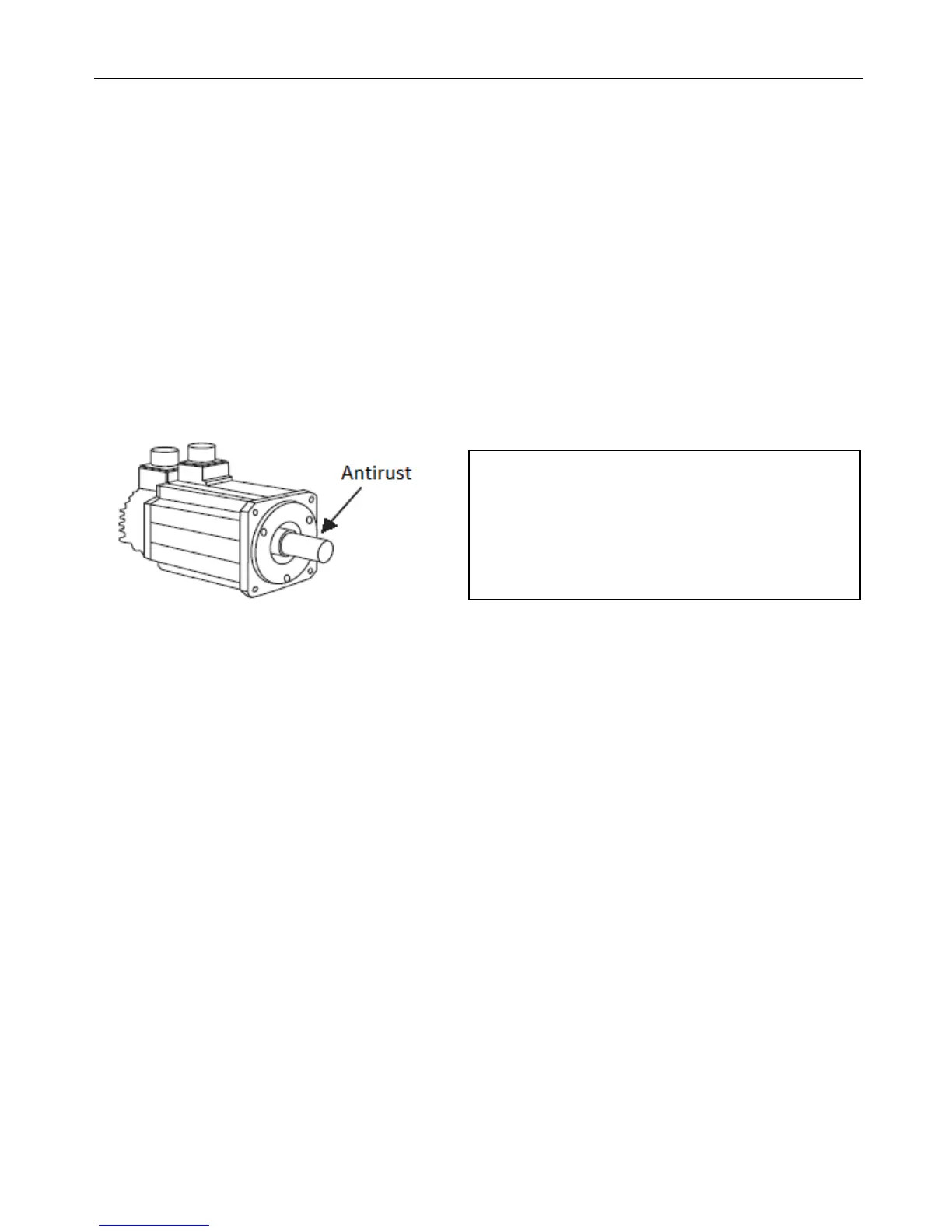

Please clear the antirust on the shaft with
thinner before install the motor. The thinner
cannot touch other parts of motor.

Xinje DS3 series servo Specifications

General

Brand	Xinje
Model	DS3 series servo
Category	Servo Drives
Language	English
