Xinje XD5 User Manual

260

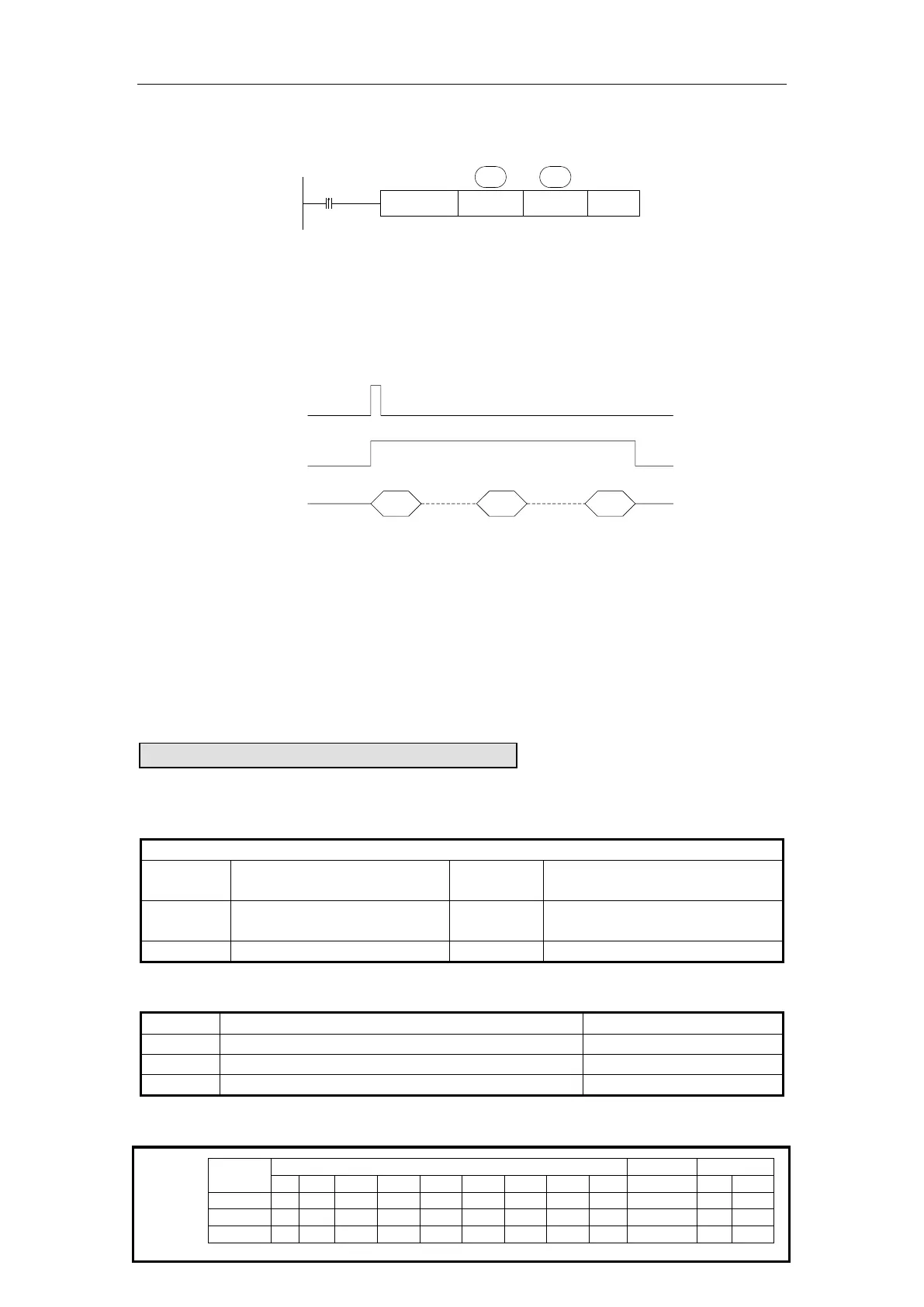

SEND D10 D100 K2
S1·
S2·
n
M0
 Data sending instructions, M0's rising edge sends data once.
 Communication port. Scope: K0 ~ K5. Port0, Port1, Port2 or Port2-RS232 or Port2-
RS485, Port3, Port4, Port5.
 In the process of data transmission, the "sending" flag SM162 (communication port 2)
is set on.
Start End Data
M0
SM162
Send data
 When the buffer number is 8 bits, only low-byte data is sent, so D100 = the number of
registers sent, for example, to send low-byte data in D10-D17, D100 should be set to
8.
 When the buffer number is 16 bits, high and low byte data will be sent, so D100 = the
number of registers sent * 2. For example, when sending high and low byte data in
D10-D17, D100 should be set to 16, and when sending, low byte will be before the
high byte.
Receive data [RCV]
1. Instruction overview
Write the specified remote station no’s data to local device.
Send data [RCV]
16-bit
instruction
RCV
32-bit
instruction
-
Execution
condition
Normally ON/OFF, rising
edge triggering
Suitable
model
XD, XL
Hardware
V3.2.3 and higher version
Software
V3.2.2 and higher version
2. Operand
Operand
Function
Type
S1
Local data starting address
16-bit, BIN
S2
Receive byte number or soft component address
16-bit, BIN
n
Communication port no.
16-bit, BIN
3. Suitable soft component
Word
operand
System
constant
Module
D
FD
ED
TD
CD
DX
DY
DM
DS
K /H
ID
QD
S1
●
●
●
●
S2
●
●
●
●
●
n
●
