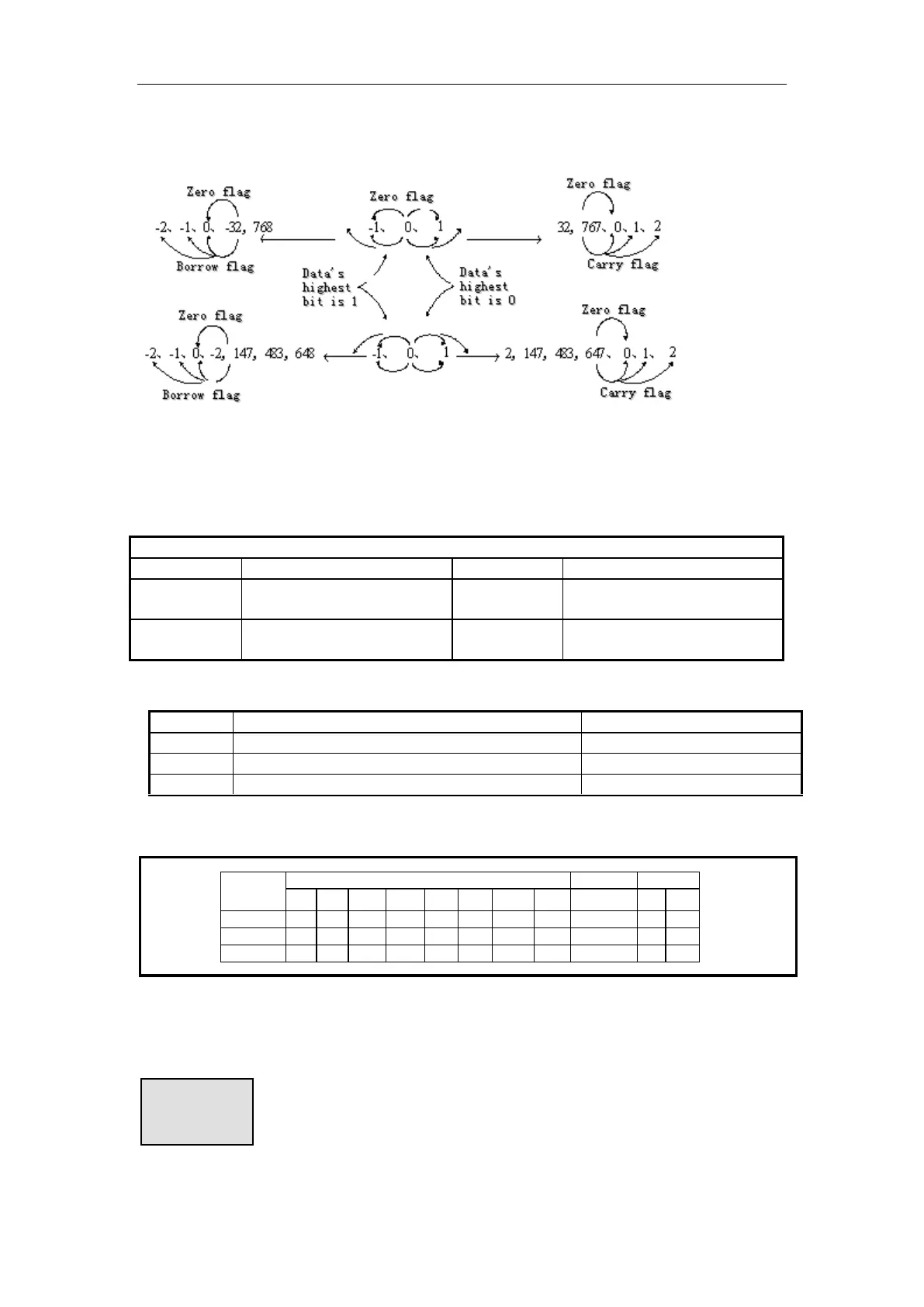

The relationship of the flag’s action and vale’s positive/negative is shown below:
4-6-3．Multiplication [MUL]
1. Summary
Multiply two numbers, store the result
Multiplication [MUL]
16 bits
MUL
32 bits
DMUL
Execution
condition
Normally ON/OFF / pulse
edge
Suitable
Models
XD, XL
Hardware
requirement
-
Software
requirement
-
2. Operands
Operands
Function
Data Type
S1
The multiplication operation data address
16 bits/32bits,BIN
S2
The multiplication operation data address
16 bits/32bits,BIN
D
The result address
16 bits/32bits,BIN
3. Suitable soft component
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD;
DM includes DM, DHM; DS includes DS, DHS.
Operand
System
Constant
Module
D
*
FD
TD
*
CD
*
DX
DY
DM
*
DS
*
K /H
ID
QD
S1
●
●
●
●
●
●
●
●
●
S2
●
●
●
●
●
●
●
●
●
D
●
●
●
●
●
●
Word
