Xinje XD5 User Manual

320

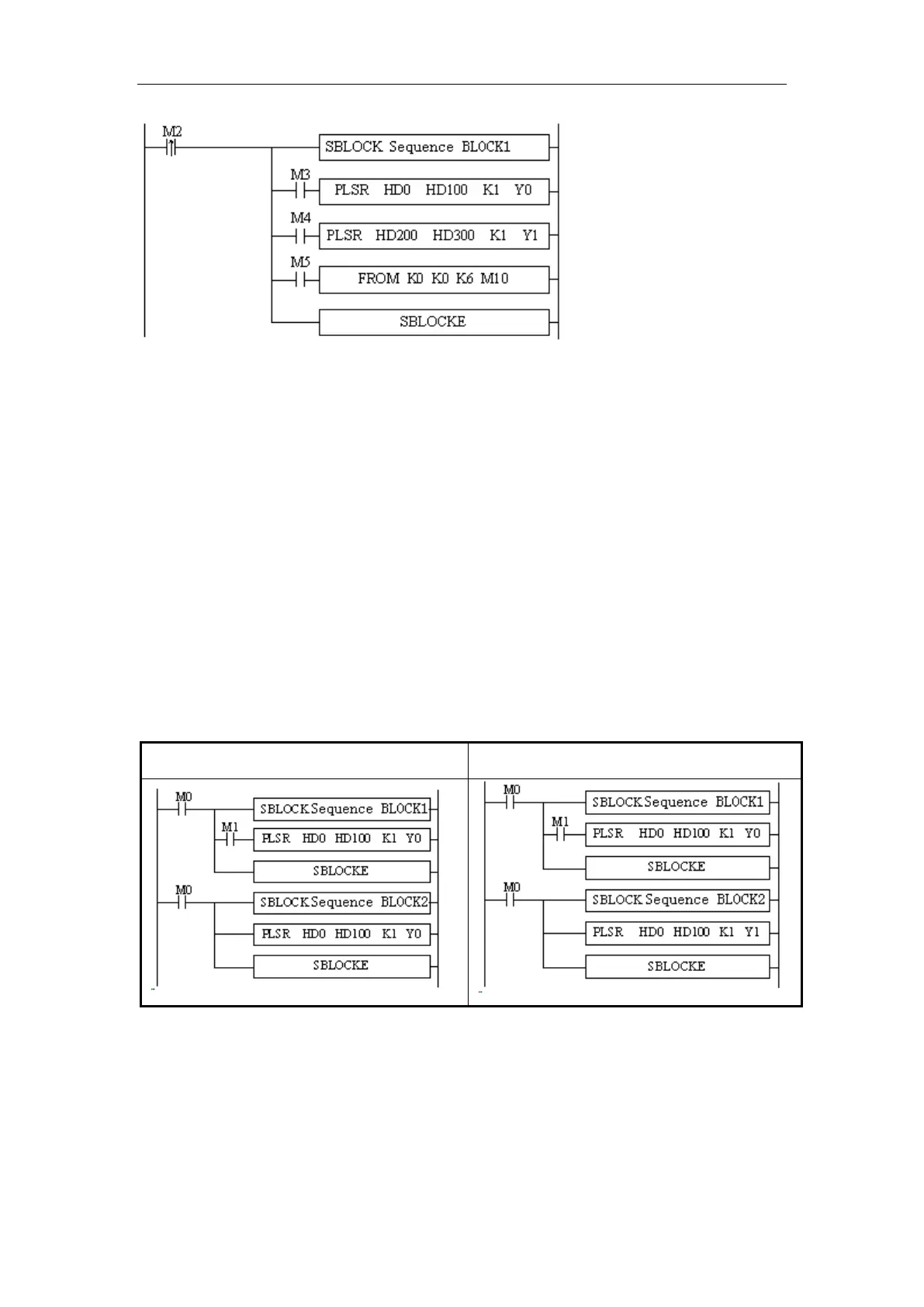

Explanation:
A) When M2 is ON, block 1 is running.
B) All the instructions run in sequence in the block.
C) M3, M4, M5 are the sign of SKIP, when they are ON, this instruction will not run.
D) When M3 is OFF, if no other instructions use this Y0 pulse, PLSR HD0 HD100 K1 Y0
will run; if not, the PLSR HD0 HD100 K1 Y0 will run after it is released by other
instructions.
E) After Y0 pulse sending completed, check M4. If M4 is OFF, check Y1 block, if M4 is
ON, check M5. If M5 is OFF, module commmunication will run.
9-5．BLOCK instruction editing rules
In the BLOCK, the instruction editing should accord with some standards.
Do not use the same pulse output terminal in different BLOCK.
NO（×）
YES（√）
