Meters
Reference Manual
116
5 CUE OVERRIDE button
If this button is switched on, the cue signal set in the CUE screen is sent to the real time
analyzer, and an analysis is displayed.
• If CUE MODE is set to MIX CUE, the frequency analysis is performed on a signal that is
a mix of all channels selected in the CUE screen.
• If CUE MODE is set to 5.1 SOLO, the signal is treated as LAST CUE. In other words, the
frequency analysis is performed on the POST ON signal of the input channel.
6 BALLISTICS field
• BALLISTICS button
Setting this switch to ON allows you to add rate of decay to the graph.
• FAST/SLOW switch button
Use this button to set the rate of decay (FAST/SLOW).
7 HOLD button
Press this button to hold the graph that displays frequency response.

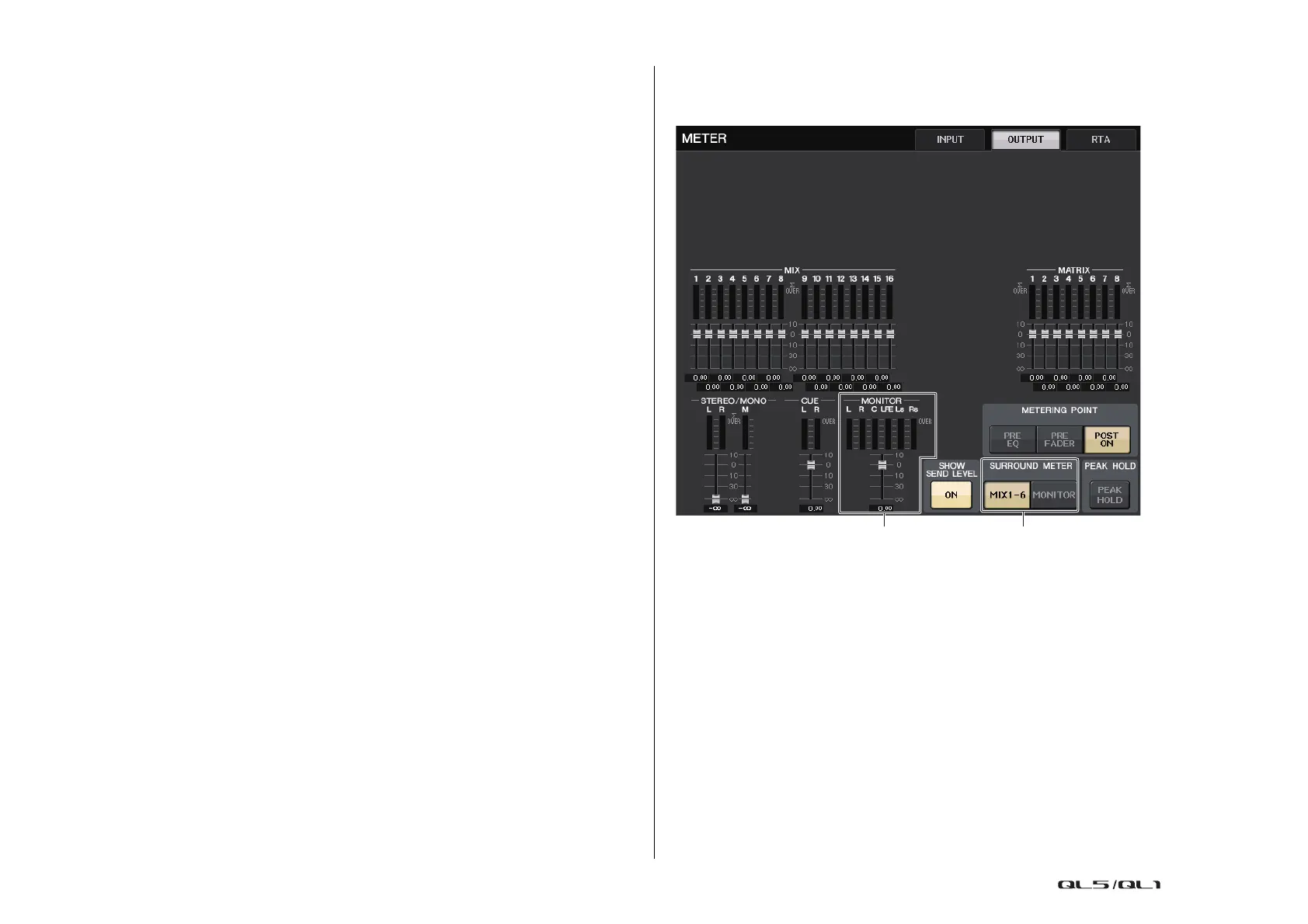

METER screen (Surround mode)
If you set a bus to Surround mode in BUS SETUP, the METER screen appears as shown
below.
1 MONITOR
Meters for MIX1-6. The layout for L R C LFE Ls and Rs is the same as the layout set in the
SURROUND SETUP screen.
2 SURROUND METER select button
Selects the meters displayed in the Function Access Area.
•MIX1-6
Source for MIX1-6.
• MONITOR
Source selected in SURROUND MONITOR. For 2CH MONITOR, the layout remains 5.1,
but with meters only for L and R.
To Next Page
