YASKAWA E-7 Series User Manual

3.2 Operating Procedures for Utility Functions
3.2.34 Program Table Edit/Save (FnB03)
3-110
 Method for Moving the Cursor

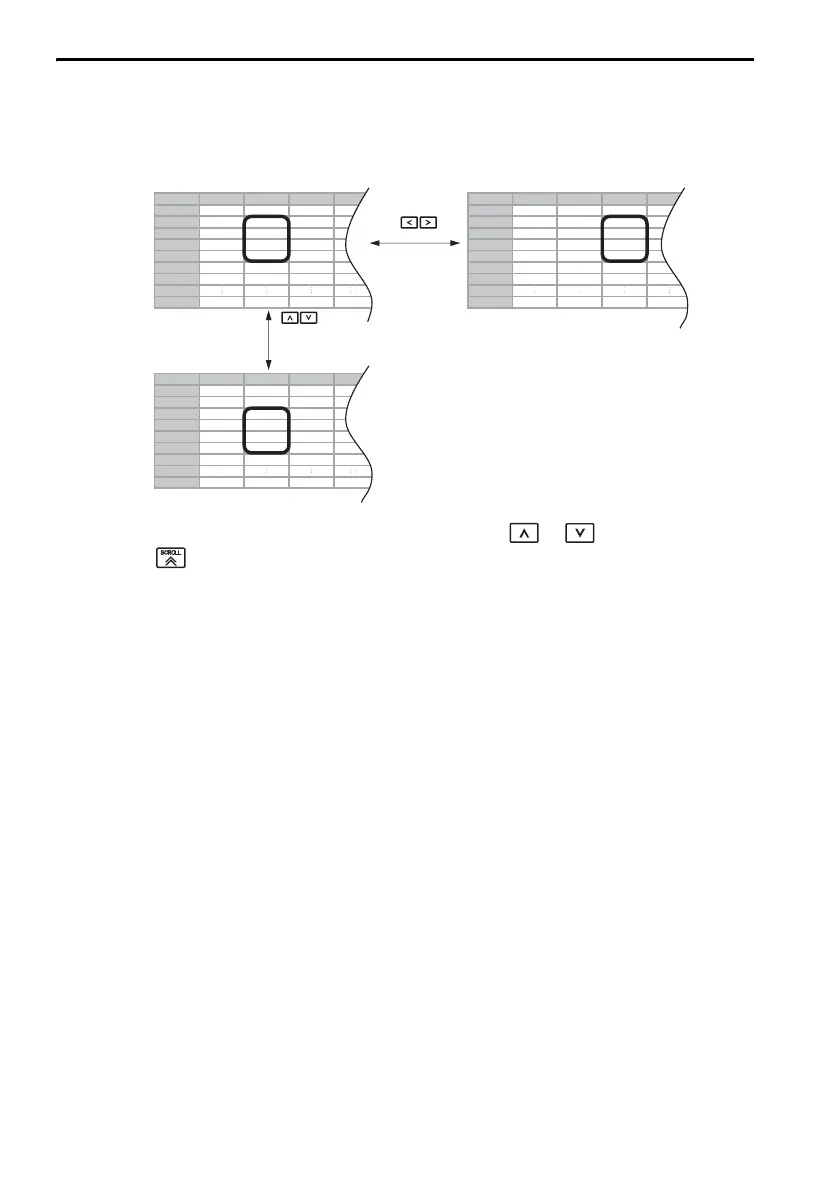

The values within the frames in the figure below are the articles
and steps of the program table displayed at the digital operator.
* You can move 4 rows at a time by holding down the or key. By using the
key at the same time as these keys, you can move 30 rows at a time.
PGMSTEP POSSPD RDSTRSPD POUT
0POS000 SPD000 RDST000 RSPD000 POUT000
1POS001 SPD001 RDST001 RSPD001 POUT001
2POS002 SPD002 RDST002 RSPD002 POUT002
3 POS003 SPD003 RDST003 RSPD003 POUT003
4POS004 SPD004 RDST004 RSPD004 POUT004
5POS005 SPD005 RDST005 RSPD005 POUT005
6POS006 SPD006 RDST006 RSPD006 POUT006
255 POS255 SPD255 RDST255 RSPD255 POUT255
PGMSTEP POSSPD RDSTRSPD POUT
0POS000 SPD000 RDST000 RSPD000 POUT000
1POS001 SPD001 RDST001 RSPD001 POUT001
2POS002 SPD002 RDST002 RSPD002 POUT002
3 POS003 SPD003 RDST003 RSPD003 POUT003
4POS004 SPD004 RDST004 RSPD004 POUT004
5POS005 SPD005 RDST005 RSPD005 POUT005
6POS006 SPD006 RDST006 RSPD006 POUT006
255 POS255 SPD255 RDST255 RSPD255 POUT255
PGMSTEP POSSPD RDSTRSPD POUT
0POS000 SPD000 RDST000 RSPD000 POUT000
1POS001 SPD001 RDST001 RSPD001 POUT001
2POS002 SPD002 RDST002 RSPD002 POUT002
3 POS003SPD003 RDST003 RSPD003 POUT003
4POS004 SPD004 RDST004 RSPD004 POUT004
5POS005 SPD005 RDST005 RSPD005 POUT005
6POS006 SPD006 RDST006 RSPD006 POUT006
255 POS255 SPD255 RDST255 RSPD255 POUT255
Moves the displayed rows up or down one row at a time.*
On reaching step 0, the next movement is to step 255.
On reaching step 255, the next movement is to step 0.
Moves the displayed
column one column at a
time to the left or right.
On reaching the edge of
the table, movement
stops.
