YASKAWA HV600 User Manual

Startup Procedure and Test Run
4
4.4 Keypad Operation
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 139

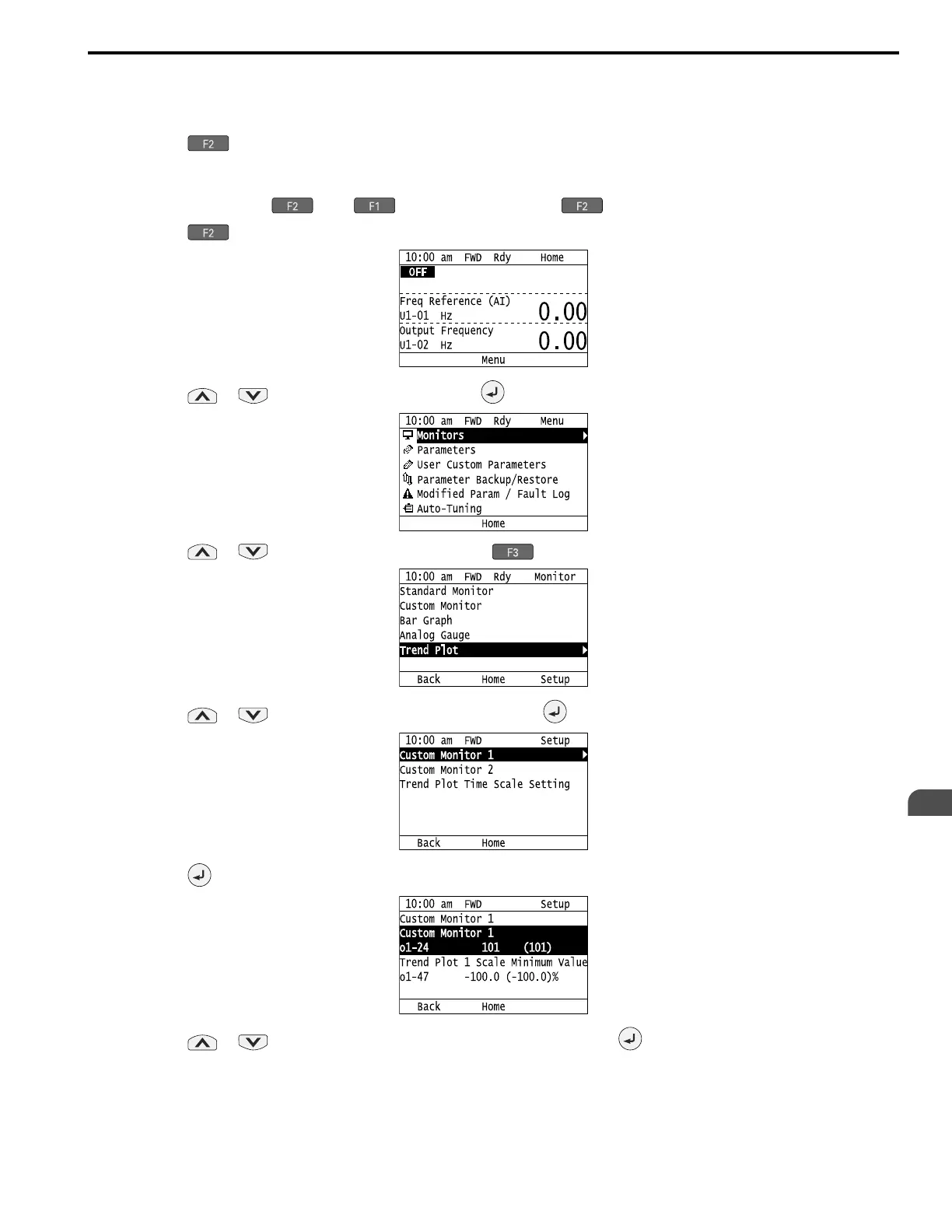

■ Select Monitor Items to Show as a Trend Plot
The procedure in this section shows how to show the frequency reference monitor as a trend plot.
1. Push (Home) to show the HOME screen.
Note:
• The keypad will show [Home] in the top right corner when the HOME screen is active.
• If [Home] is not shown on , push (Back) to show [Home] on .
2. Push (Menu).
3. Push or to select [Monitors], then push .
4. Push or to select [Trend Plot], then push (Setup).
5. Push or to select [Custom Monitor 1], then push .
6. Push .
7. Push or to select the monitor number to register, then push .
When the U parameters are on the display as “Ux-xx”, the three digits in “x-xx” identify which monitor to
output. For example, to show monitor U1-01 [Frequency Reference], set it to “101” as shown in this figure.

YASKAWA HV600 Specifications

General

Category	DC Drives
Series	HV600
Overload Capacity	150% for 60 seconds
Output Voltage	0 - Input Voltage
Enclosure	NEMA 1, NEMA 12
Communication	Ethernet/IP, Modbus, DeviceNet, Profibus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short Circuit
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Control Method	Vector Control
