Startup Procedure and Test Run
4
4.4 Keypad Operation
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 141
13. Push to keep the changes.
14. Push (Back).
If necessary, use the same procedure to set [Custom Monitor 2].

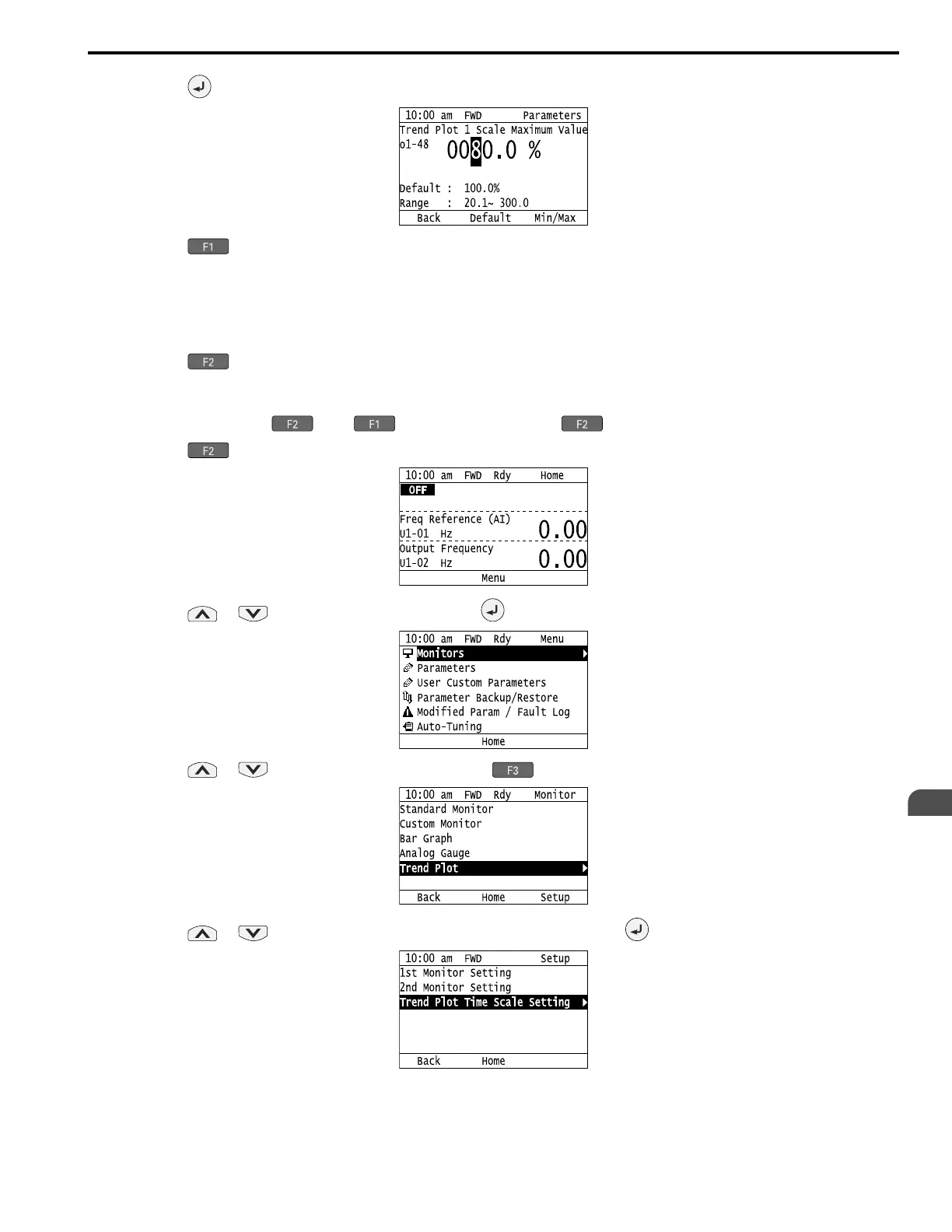

■ Set the Time Scale for the Trend Plot Monitor
The procedure in this section shows how to set the time scale for the trend plot monitor.
1. Push (Home) to show the HOME screen.
Note:
• The keypad will show [Home] in the top right corner when the HOME screen is active.
• If [Home] is not shown on , push (Back) to show [Home] on .
2. Push (Menu).
3. Push or to select [Monitors], then push .
4. Push or to select [Trend Plot], then push (Setup).
5. Push or to select [Trend Plot Time Scale Setting], then push .
To Next Page
