5.7 H: Terminal Functions
300 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference

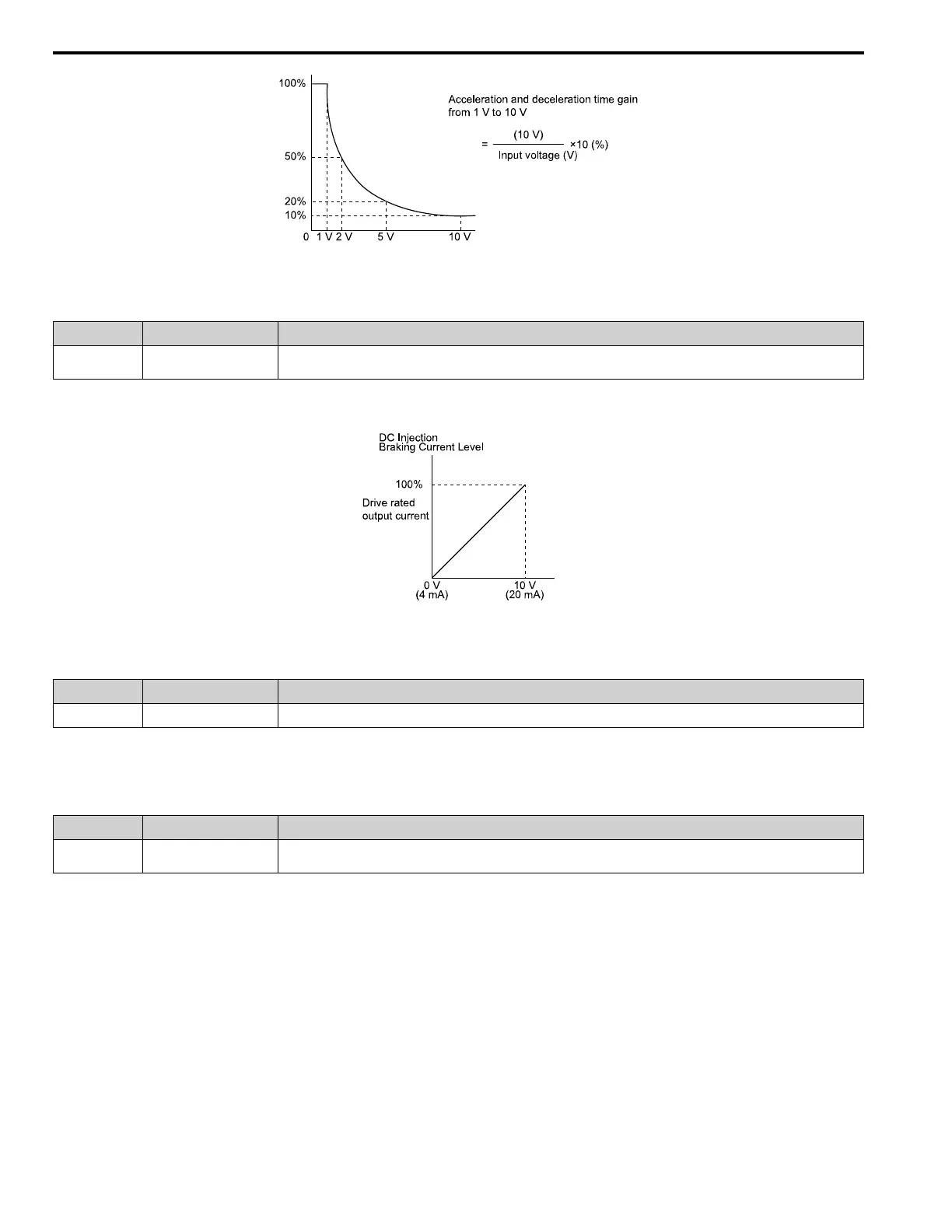

Figure 5.60 Acceleration/Deceleration Time Gain through Analog Input
â– 6: DC Injection Braking Current
Setting Value Function Description
6 DC Injection Braking
Current
Enters a signal to adjust the current level used for DC Injection Braking when the drive rated output current is 100%.
Note:
When you set this function, it will disable the setting value of b2-02 [DC Injection Braking Current].
Figure 5.61 DC Injection Braking Current through Analog Input
â– 7: Torque Detection Level
Setting Value Function Description
7 Torque Detection Level Enters a signal to adjust the overtorque/undertorque detection level.
Note:
Use this function with L6-01 [Torque Detection Selection 1]. This parameter functions as an alternative to L6-02 [Torque Detection Level 1].
â– 8: Stall Prevent Level During Run
Setting Value Function Description
8 Stall Prevent Level During
Run
Enters a signal to adjust the stall prevention level during run if the drive rated current is 100%.
Note:
The Stall Prevent Level During Run is based on the smaller of these two values:
• Analog input value of MFAI terminal
• L3-06 [Stall Prevent Level during Run]
To Next Page
