5.11 S: Special Applications
378 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference
d1-01: Reference 1
d1-02: Reference 2
d1-03: Reference 3

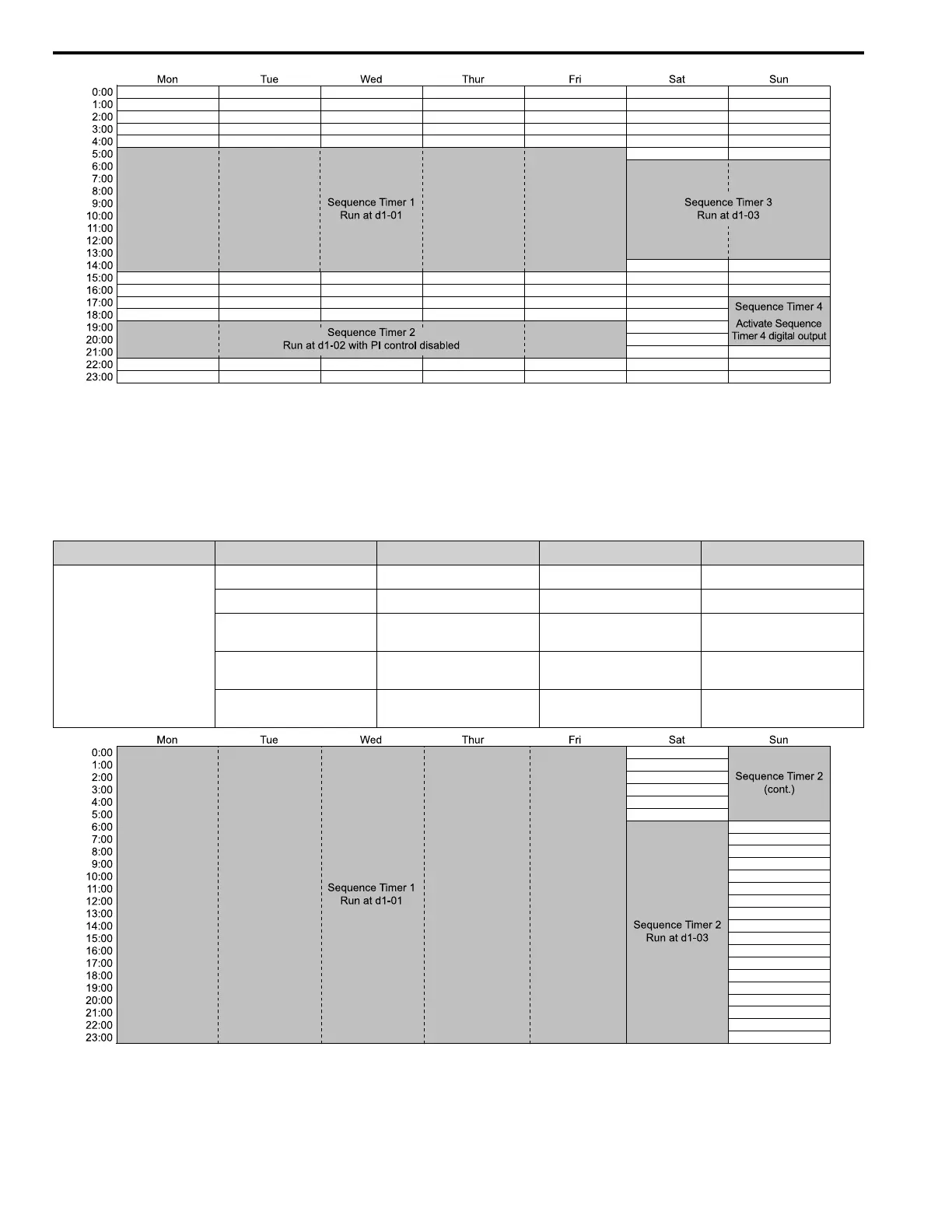

Figure 5.92 Example of Sequence Timer 1
Figure 5.93 shows an example of sequence timer operation when you set the drive parameters as specified in Table
5.55.
Table 5.55 Parameter Settings for Example of Sequence Timer 2
Tine Display Format Sequence Timer 1 Sequence Timer 2 Sequence Timer 3 Sequence Timer 4
o4-22 = 0
[24 Hour Clock]
S2-01 = 00:00 S2-06 = 06:00 - -
S2-02 = 00:00 S2-07 = 06:00 - -
S2-03 = 2
[Mon - Fri]
S2-08 = 3
[Sat - Sun]
S2-13 = 0
[Timer Disabled]
S2-18 = 10
[Timer Disabled]
S2-04 = 1
[Run]
S2-09 = 1
[Run]
- -
S2-05 = 0
[Operator (d1-01/YA-01)]
S2-10 = 2
[Operator (d1-03/YA-03)]
- -
d1-01: Reference 1 d1-03: Reference 3
Figure 5.93 Example of Sequence Timer 2
