2.7 Removing/Reattaching Covers
52 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference

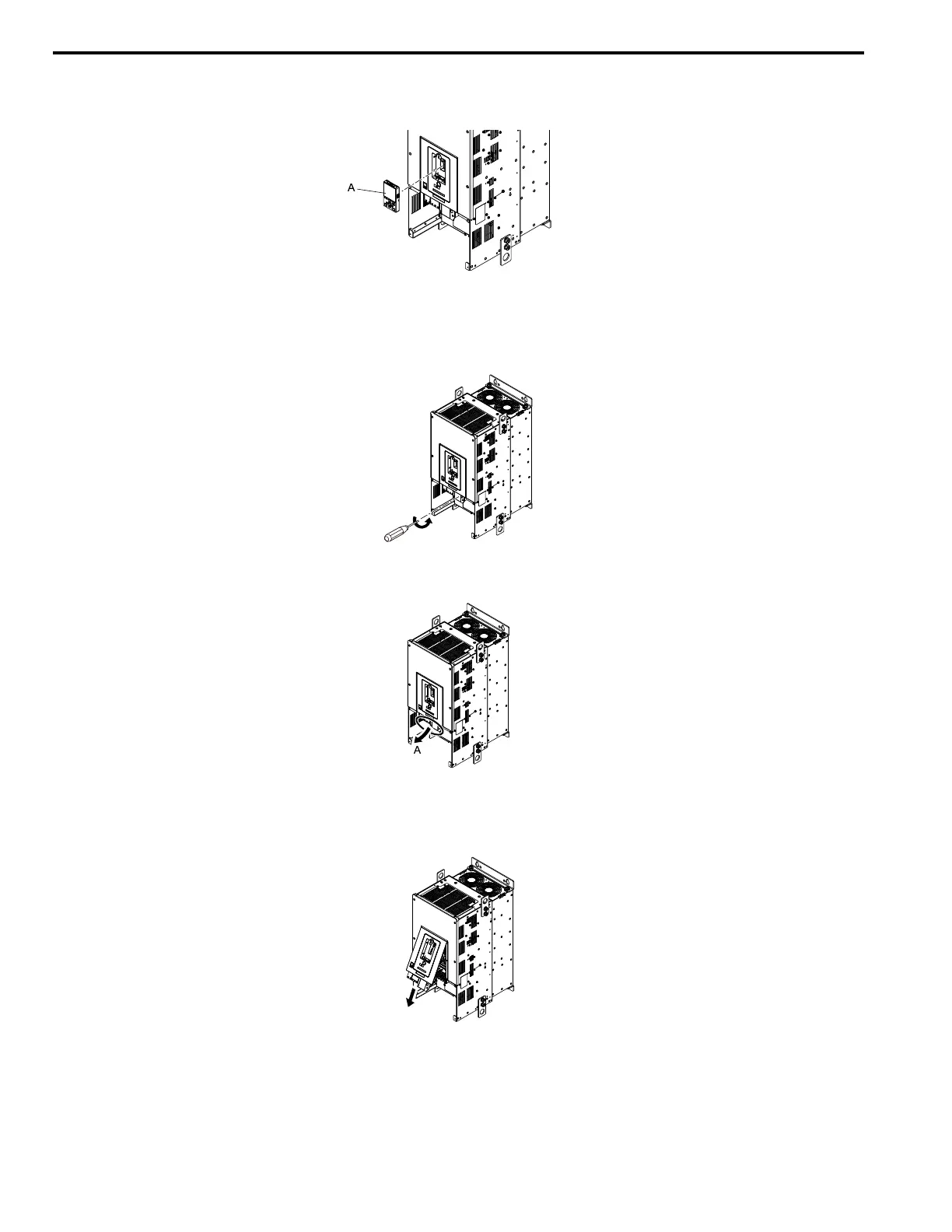

■ Remove the Front Cover
1. Remove the keypad from the drive.
A - Keypad
Figure 2.25 Remove the Keypad
2. Loosen the front cover screws.
Figure 2.26 Loosen the Front Cover Screws
3. Pull part A of the front cover forward to remove the cover from the drive.
A - Pull forward to remove the front cover.
Figure 2.27 Pull Forward to Remove the Front Cover
4. Remove the front cover from the drive.
Figure 2.28 Remove the Front Cover
■ Reattach the Front Cover
Wire the drive and other peripheral devices then reattach the front cover.
