YASKAWA HV600 User Manual

Mechanical Installation
2
2.7 Removing/Reattaching Covers
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 53

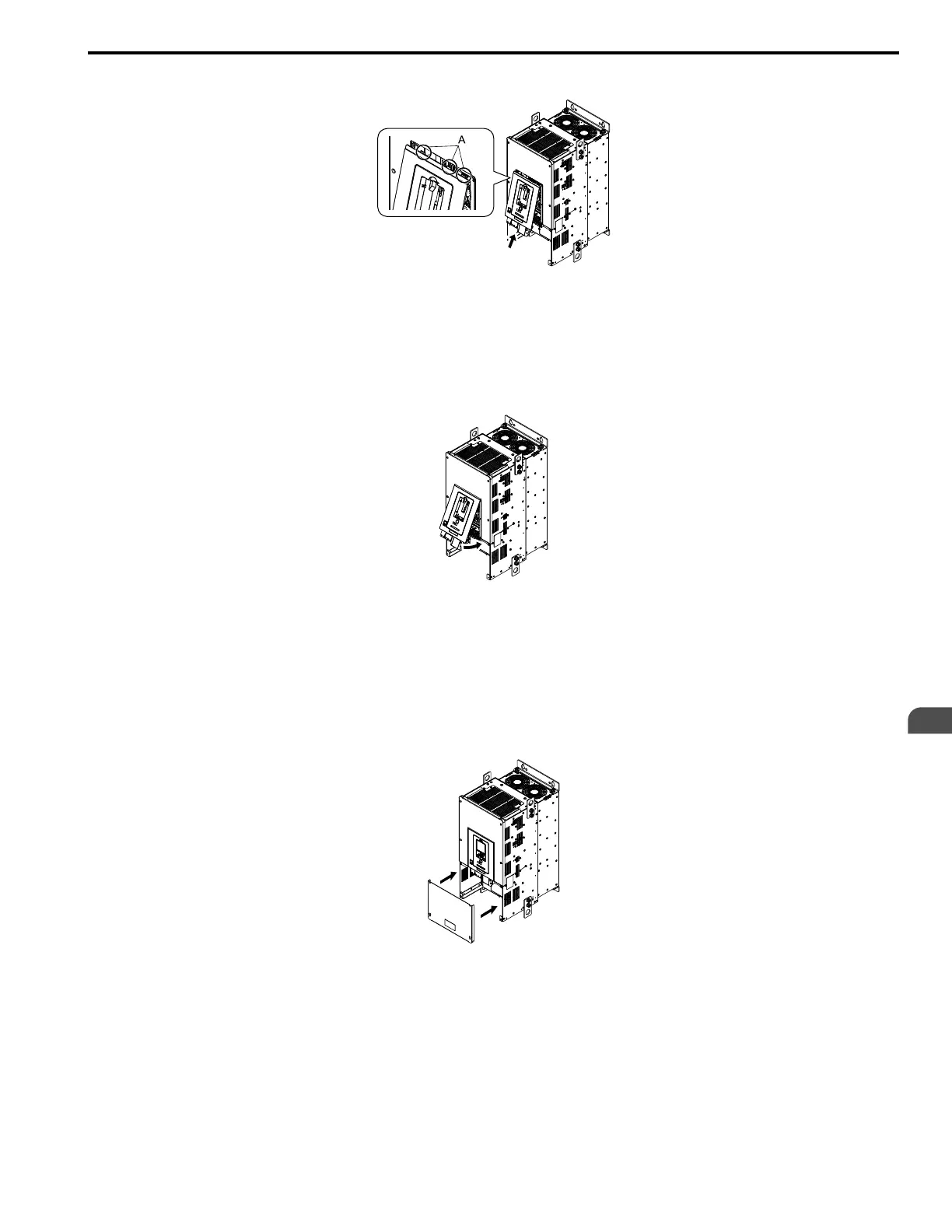

1. Move the front cover to connect the hooks at the top of the front cover to the drive.
A - Hooks
Figure 2.29 Reattach the Front Cover
2. Move the front cover while pushing on the hooks on the left and right sides of the front cover until it clicks into
position.
Note:
Make sure that you did not pinch wires or signal lines between the front cover and the drive before you reattach the cover.
Figure 2.30 Reattach the Front Cover
3. Reattach the keypad to its initial position.
■ Reattach the Terminal Cover
Wire the drive and other peripheral devices then reattach the terminal cover.
Note:
• Make sure that you do not pinch wires or signal lines between the wiring cover and the drive before you reattach the cover.
• Tighten the screws to a tightening torque of 0.98 N∙m to 1.33 N∙m (8.67 in∙lb to 11.77 in∙lb).
Figure 2.31 Reattach the Terminal Cover
