Periodic Inspection and Maintenance
8
8.4 Replace Drive Cooling Fans and Circulation Fans
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 575

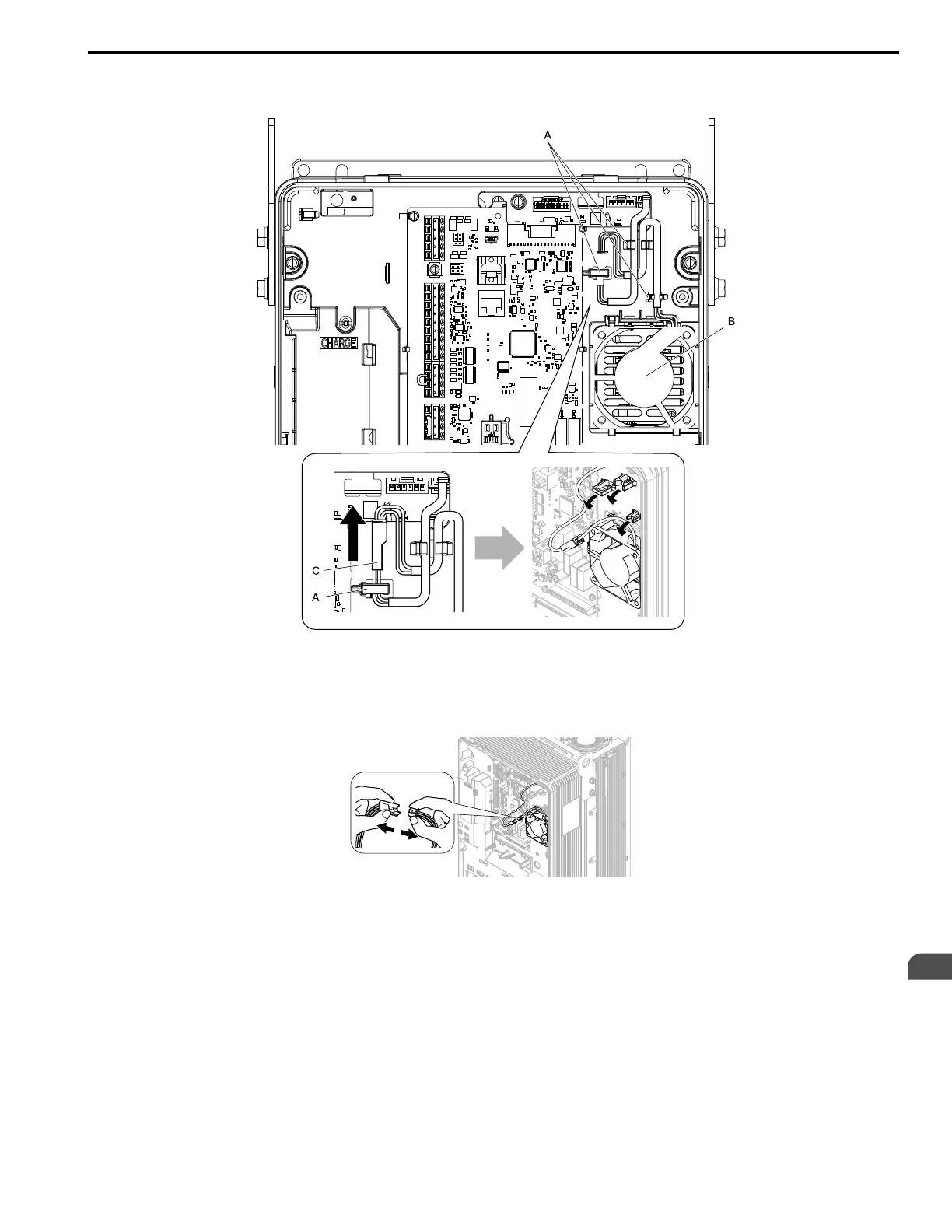

1. Pull the connector toward the top of the drive to remove from the hook then remove the cables from the
hooks.
A - Hooks
B - Circulation fan
C - Power supply connector
Figure 8.33 Remove the Cables
2. Disconnect the power supply connector.
Figure 8.34 Disconnect the Connector
To Next Page
