8.4 Replace Drive Cooling Fans and Circulation Fans
576 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference
3. Push the fan toward the top of the drive to push on the tabs at the top of the fan, then pull the bottom of the fan
forward to remove it from the drive.
A - Circulation fan B - Tabs

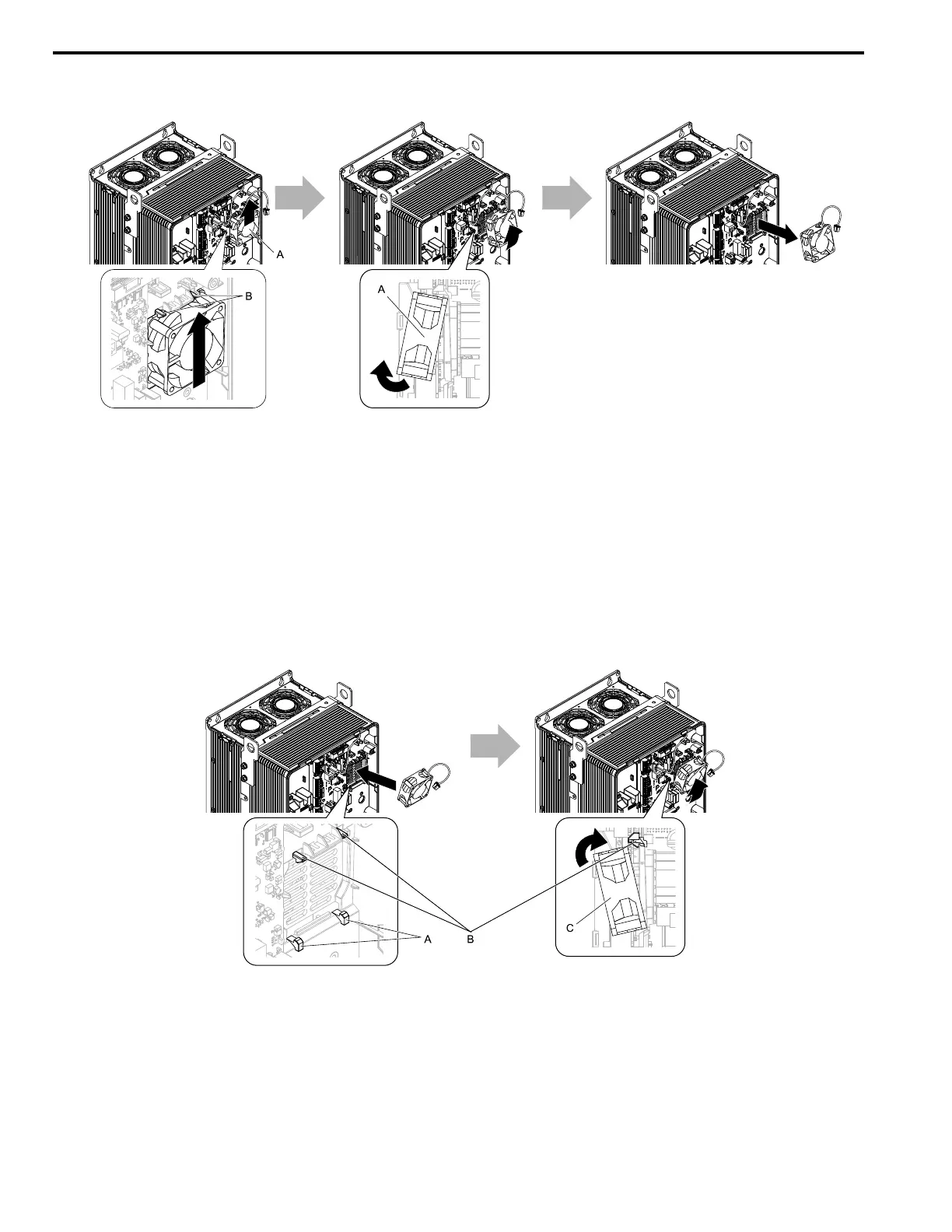

Figure 8.35 Remove the Circulation Fan
■ Install a Circulation Fan
Note:
Use this procedure only when you use one of these drive models:
• 2075CVx to 2114CVx
• 4077CVx to 4124CVx
Reverse the removal procedure to install a circulation fan.
1. Put the bottom of the fan on the tabs in position A then push the fan until the tabs in position B click into
position to put the fan back into the drive.
A - Tabs at the bottom of the fan
B - Tabs at the top of the fan
C - Circulation fan
Figure 8.36 Install the Circulation Fan
