YASKAWA HV600 User Manual

Periodic Inspection and Maintenance
8
8.4 Replace Drive Cooling Fans and Circulation Fans
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 579

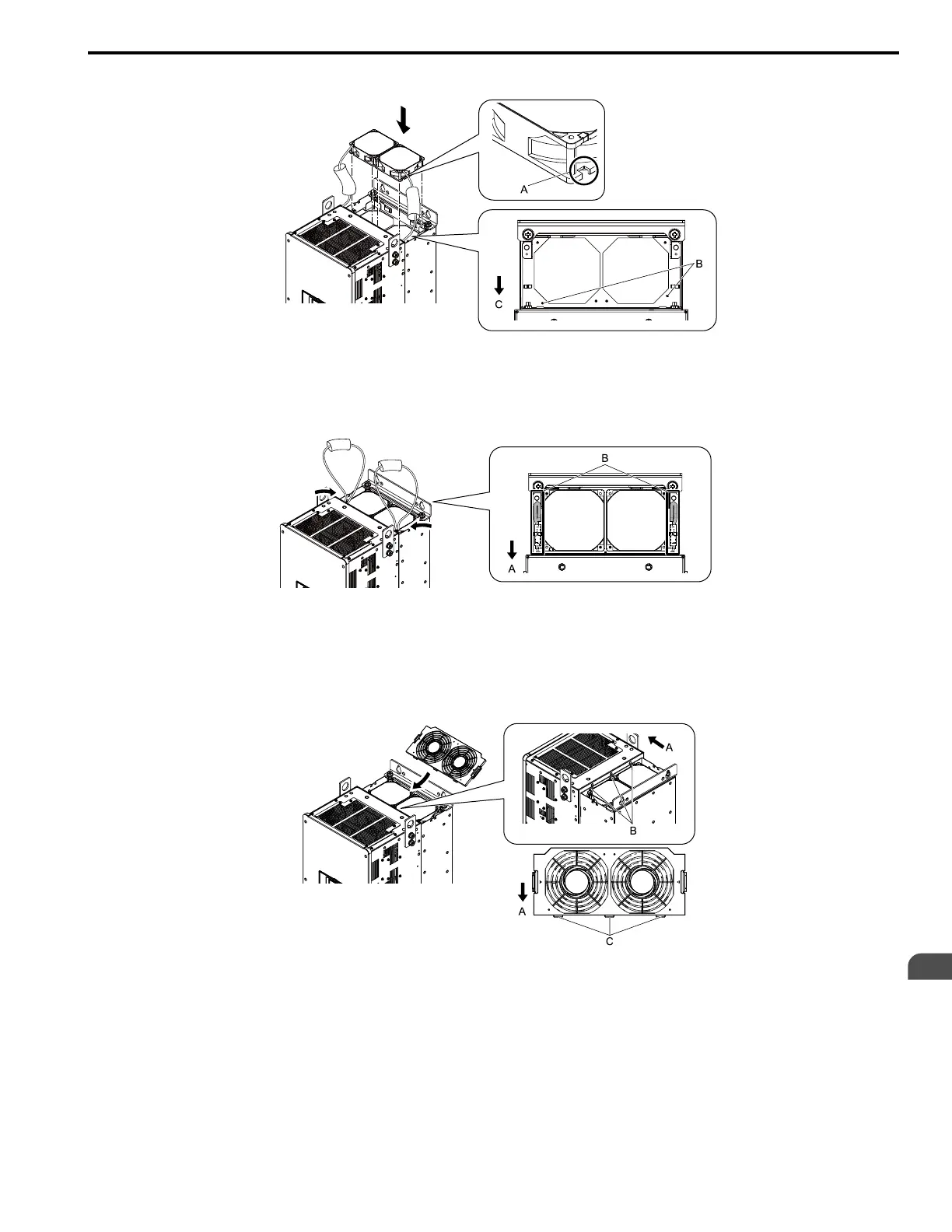

2. Align the notches on the fan with the pins on the drive and install the cooling fan in the drive.
A - Notch on fan
B - Alignment pins on drive
C - Front of drive
Figure 8.42 Install the Cooling Fans
3. Put the cables and connectors in the recess of the drive.
A - Front of drive B - Recess for cable and connector
*1
Figure 8.43 Put the Cables and Connectors in the Drive Recess
*1 Make sure that the cable and connector are in the correct space.
4. Hold the fan finger guard at an angle and put the connector tabs on the fan finger guard into the holes on the
drive.
A - Front of drive
B - Drive holes
C - Tabs
Figure 8.44 Install the Fan Finger Guard
