11.3 European Standards
778 YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference

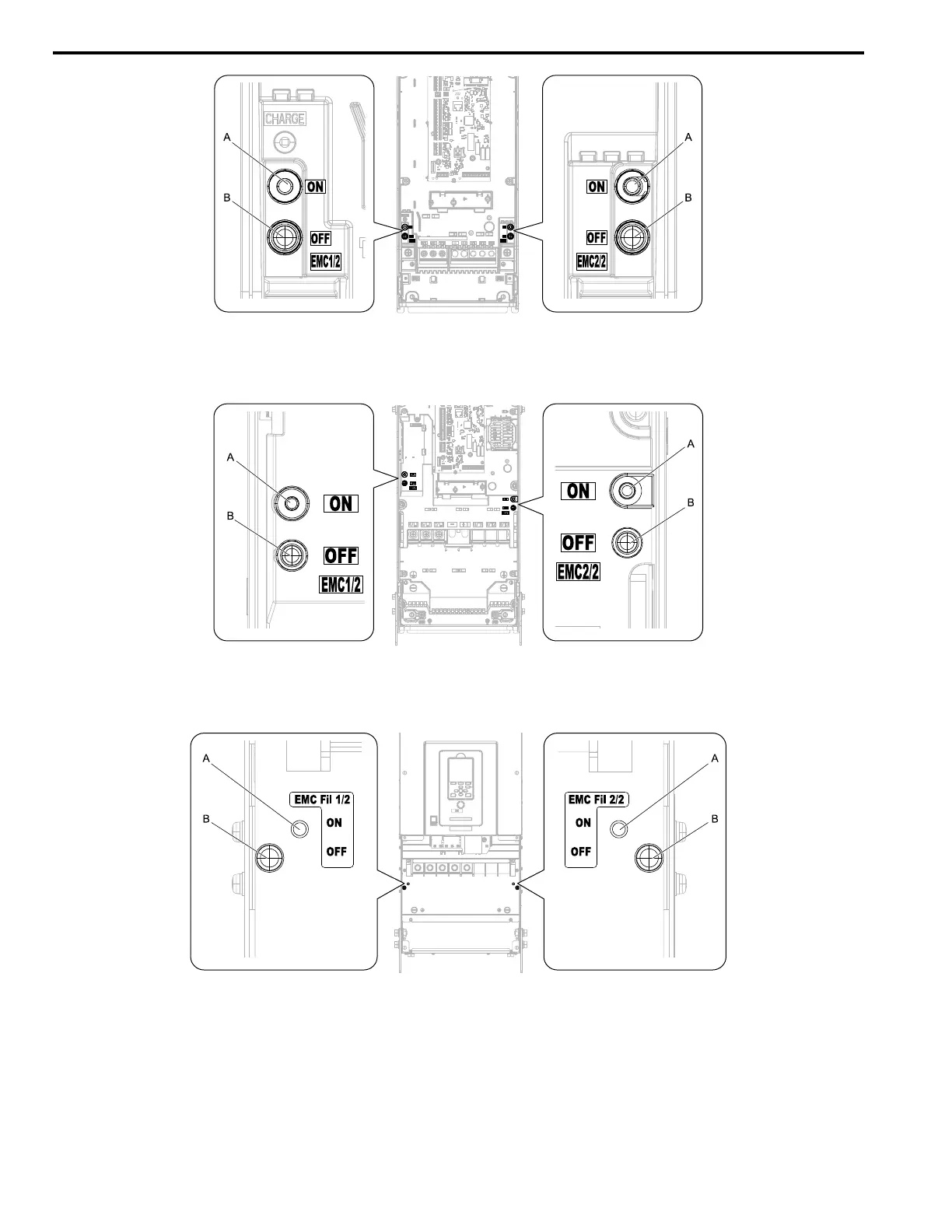

A - SW (ON) B - Screw (OFF)
Figure 11.9 EMC Filter Switch Location 3
A - SW (ON) B - Screw (OFF)
Figure 11.10 EMC Filter Switch Location 4
A - SW (ON) B - Screw (OFF)
Figure 11.11 EMC Filter Switch Location 5
To Next Page
