Standards Compliance
11
11.3 European Standards
YASKAWA SIEPYAIH6B01A HV600 AC Drive Bypass Technical Reference 777
Table 11.3 EMC Filter Switch Location
Bypass Model Drive Model Switch Location Diagram
D002 - D016
A002 - A015
B001 - B014
2011, 2017, 4005 - 4014
Figure 11.7
D024, D030
A022, A028
B021 - B034
2024, 2031, 4021 - 4034
Figure 11.8
D046, D059
A042, A054
B040 - B065
2046, 2059, 4040 - 4065
Figure 11.9
D074 - D114
A068 - A104
B077- B124
2075 - 2114, 4077 - 4124
Figure 11.10
D143, D169
A130, A154
B156
2143, 2169, 4156
Figure 11.11
D211, D273
A192, A248
B180, B240
2211, 2273 4180, 4240
Figure 11.12
B302 4302
Figure 11.13
A - SW (ON) B - Screw (OFF)

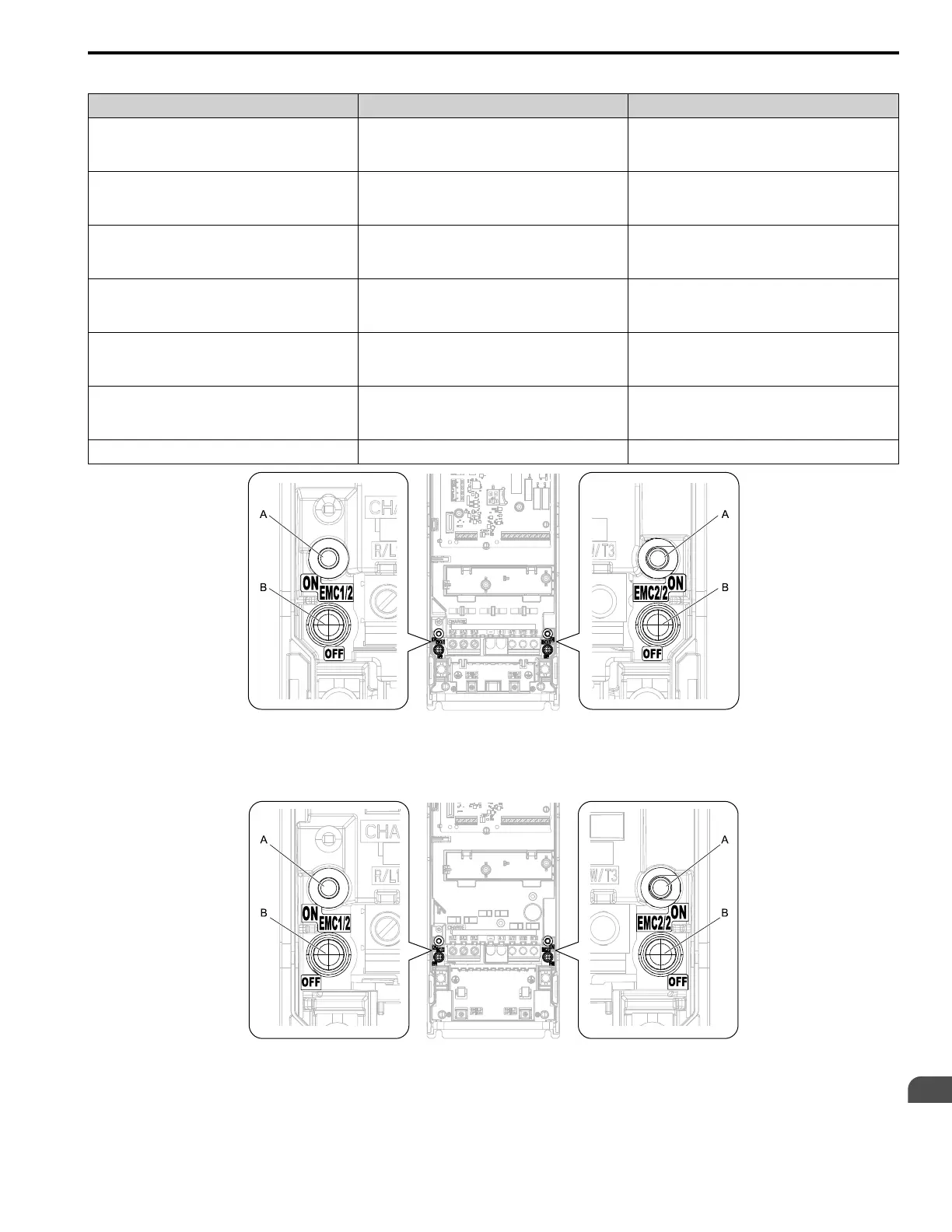

Figure 11.7 EMC Filter Switch Location 1
A - SW (ON) B - Screw (OFF)
Figure 11.8 EMC Filter Switch Location 2
