Parameter Details
1
• Make sure that b1-04 is set to 4 and H6-01 is set to 0.
• Set the pulse input scaling H6-02 to the pulse train frequency value that equals to 100%
frequency reference.
• Enter a pulse train signal to terminal RP and check if the correct frequency reference is
displayed. Try also with different pulse train input frequencies.
■ b1-02: Run Command Selection 1
Parameter b1-02 determines the run and Stop command source 1 in the REMOTE mode.
Setting 0: Operator
Using this setting, the RUN and STOP keys on the operator keypad will start and stop the
motor. The LED in the LO/RE key will be on to indicate that the Run command is assigned
to the operator. The example below shows how the drive can be operated if b1-02 is set to 0.

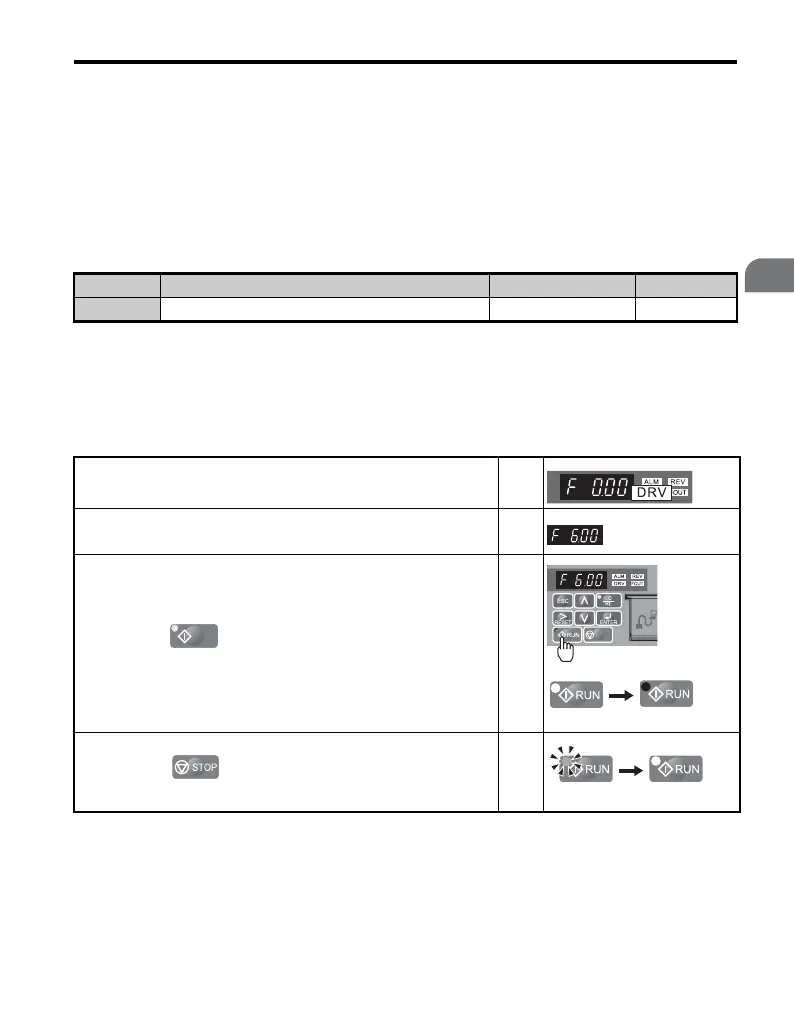

Table 1.19 Operation from Digital Operator
Setting 1: Control Circuit Terminal
This setting requires that the Run and Stop commands are entered from the digital input
terminals. The following sequences can be used:
• 2-wire sequence 1:
No. Parameter Name Setting Range Default
b1-02 Run Command Selection 1 0 to 3 1
1. Turn on the power to the drive. The initial display appears. ⇒
2. Set the frequency reference to F6.00 (6 Hz). ⇒
3.
Press the key to start the motor. The RUN indicator LED
will light and the motor will begin rotating at 6 Hz.
⇒
4.
Press the key to stop the motor. The RUN light will flash
until the motor comes to a complete stop.
⇒
RUN
STOP
off on
flashing
off
