YASKAWA V1000 User Manual

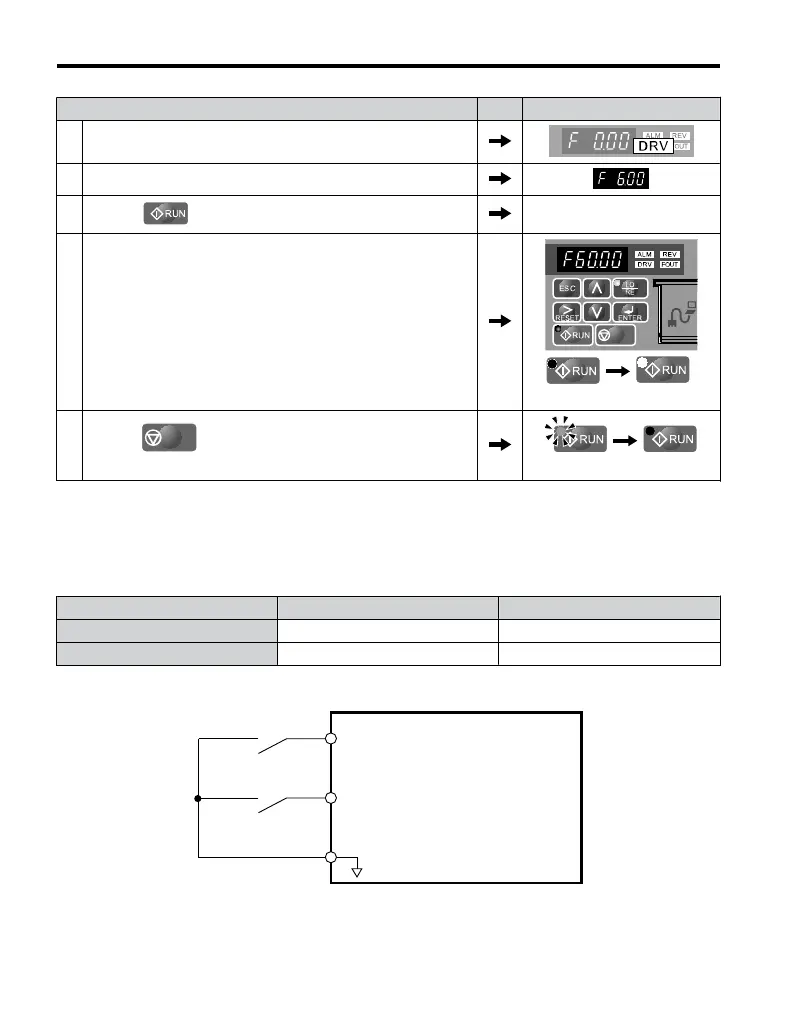

Step Display/Result
1. Turn on the power to the drive. The initial display appears.
2. Set the frequency reference to F6.00 (6 Hz).
3.
Press the key to start the motor.
4. The motor should accelerate up to 6 Hz while the RUN light is on.
STOP
off on
5.
Press the
STOP
key to stop the motor. The RUN light will flash
until the motor comes to a complete stop.
flashing
off
n
Run the Drive using Digital Input Terminals: b1-02 = 1
This setting uses the digital input terminals to enter the run command. The factory setting is
a 2-Wire sequence.
Using a 2-Wire Sequence
Digital Input Terminals ON OFF
S1 Forward Run Stop
S2 Reverse Run Stop
S1
S2
SC
Drive
Forward Run
Reverse Run
Digital Input Common
Figure 4.12 Example Wiring Diagram for 2-Wire Sequence
4.6 Basic Drive Setup Adjustments
110
YASKAWA ELECTRIC TOEP C710606 47A YASKAWA AC Drive – V1000 Quick Start Guide

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
