Front Views
I
H
F
A
B
C
D
E
G
I
A
B
C
D
E
F
G
H
CIMR-V 2A0006B CIMR-V 2A0012B
A Terminal board
connector
B DIP switch S1 Refer to
DIP Switch S1 Analog
Input Signal Selection on
page 76
C DIP switch S3 Refer to
Sinking/Sourcing Mode
Switch on page 73
D Control circuit terminal
Refer to Control Circuit
Wiring on page 66
E Main circuit terminal
Refer to Wiring the Main
Circuit Terminal on page
65
F Ground terminal
G Terminal cover
H Option card connector
I DIP switch S2

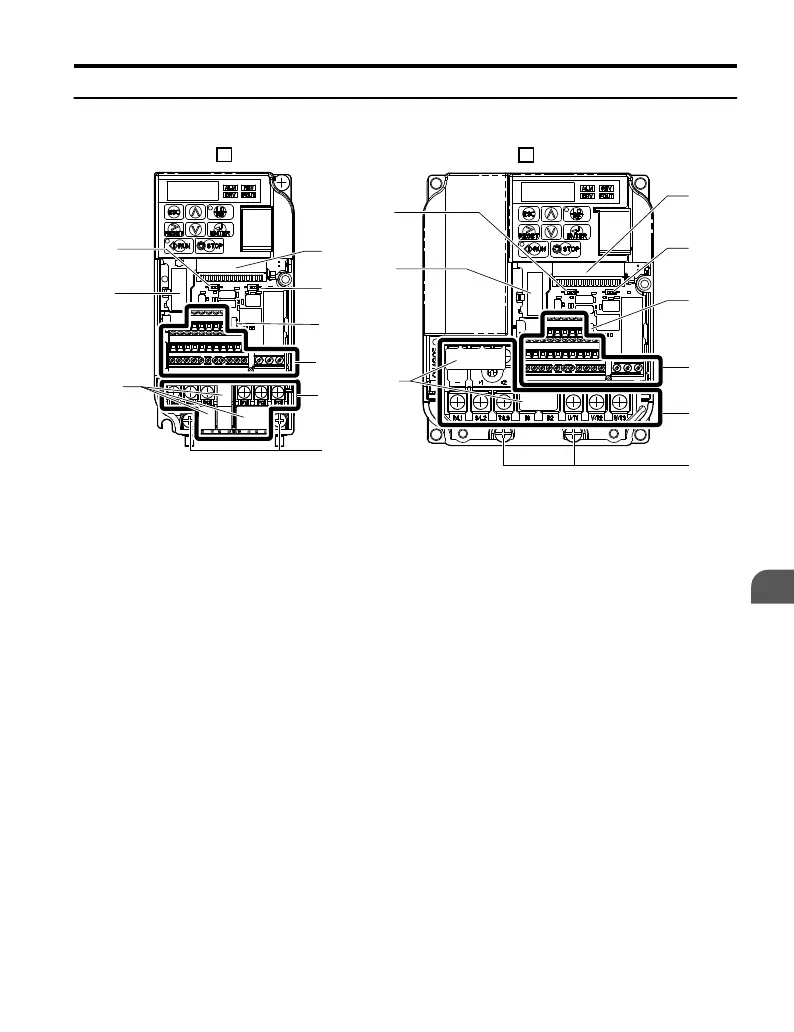

Figure 1.8 Front Views of Drives
1.2 Component Names
YASKAWA ELECTRIC TOEP C710606 47A YASKAWA AC Drive – V1000 Quick Start Guide
