YASKAWA V1000 - Terminal Configuration

u
Terminal Configuration
S1 S2 S3 S4 S5 S6 S7 HC SC H1 RP
R+ R– S+ S– IG
P1 P2 PC A1 A2 +V AC AM AC MP
MCMBMA
S1 S2 S3 S4 S5 S6 S7 HC SC H1 RP
R+ R- S+ S- IG
P1 P2 PC A1 A2 +V AC AM AC MP
MCMBMA

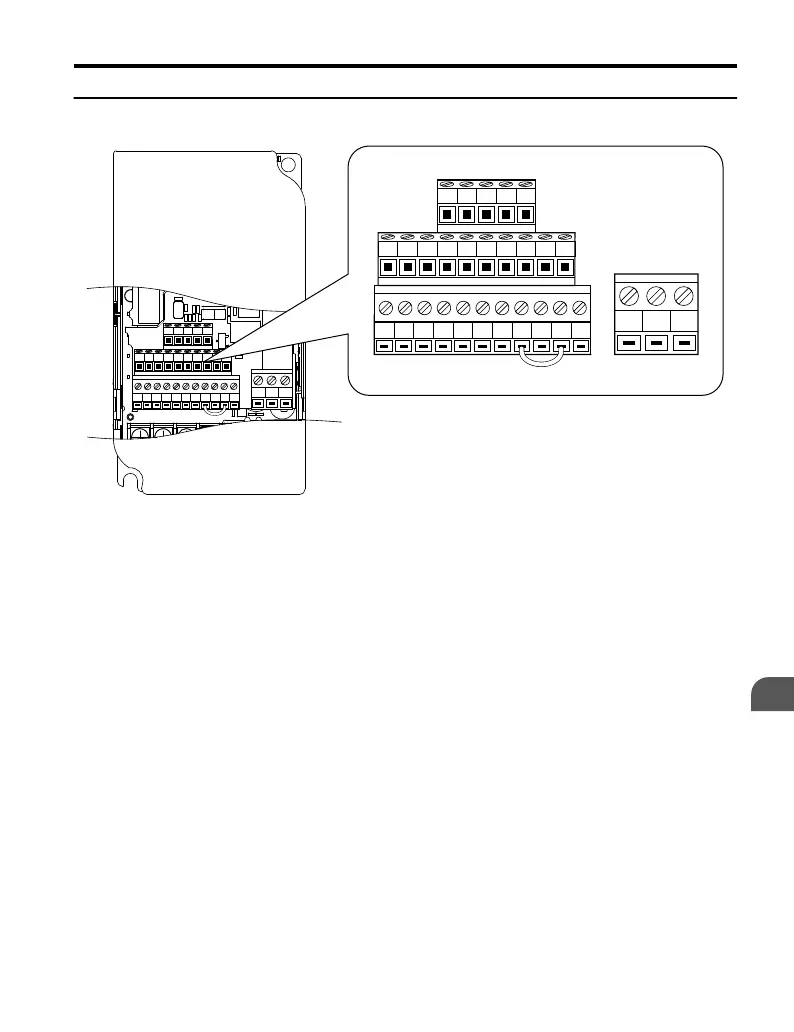

Figure 3.15 Removable Control Circuit Terminal Block
(CIMR-VAooooooo; CIMR-VUooooooo)
3.5 Control Circuit Wiring
