A
B
C
D
A – External power, 48 V max.
B – Suppression diode
C – Coil
D – 50 mA or less

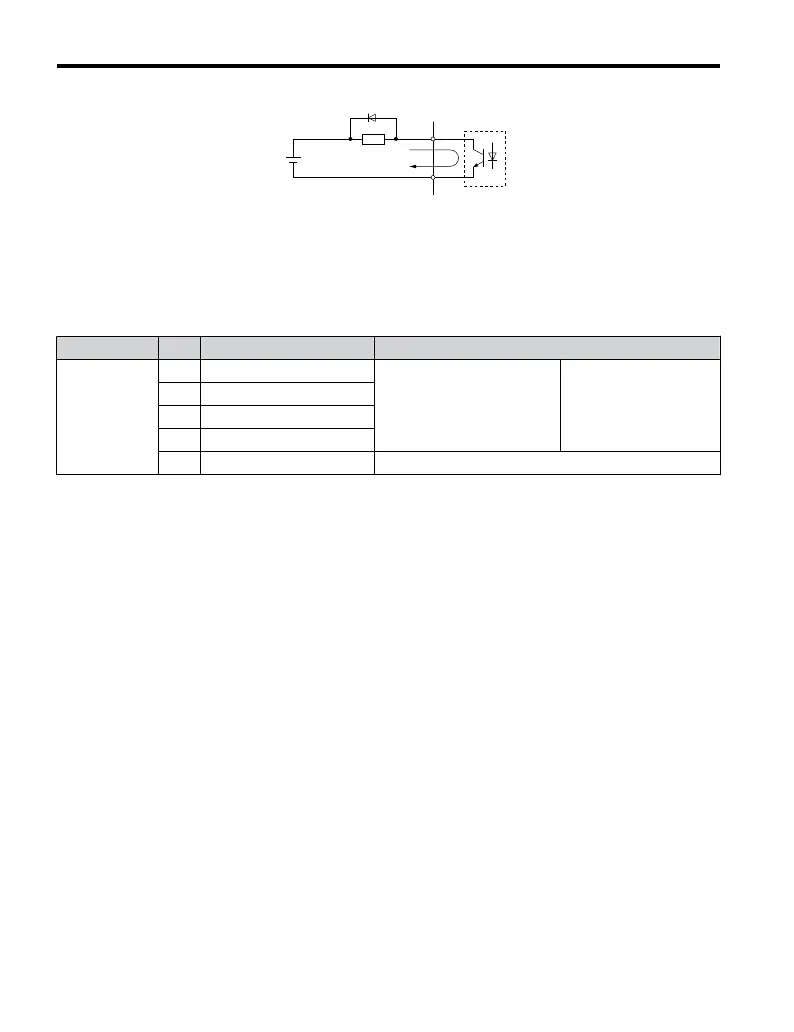

Figure 3.14 Connecting a Suppression Diode
n
Serial Communication Terminals
Table 3.8 Control Circuit Terminals: Serial Communications
Type No. Signal Name Function (Signal Level)
MEMOBUS/
Modbus
Communication
R+ Communications input (+)
MEMOBUS/Modbus
communication: Use a RS-485
or RS-422 cable to connect the
drive.
RS-485/422 MEMOBUS/
Modbus communication
protocol 115.2 kbps (max.)
R- Communications input (-)
S+ Communications output (+)
S- Communications output (-)
IG Shield ground 0 V
3.5 Control Circuit Wiring
68
