LO/RE LED and RUN LED Indications
LED Lit Flashing
Flashing Quickly
<1>
Off
When a Run command
is selected from the
LED operator
(LOCAL)
– –
Run command is selected
from device other than LED
operator (REMOTE)
During Run
• During deceleration to
stop
• When a Run
command is input and
frequency reference is
0
• During deceleration
at a fast-stop.
• During stop by
interlock operation.
<2>
During stop
As shown
<1> Refer to Figure 4.1 for the difference between “flashing” and “flashing quickly”.
<2> Refer to the description for parameter U4-21 on page 200 for information on verifying operation interlock.
Flashing
ON ON
ON
ON ON
ON
1 s
Flashing
quickly

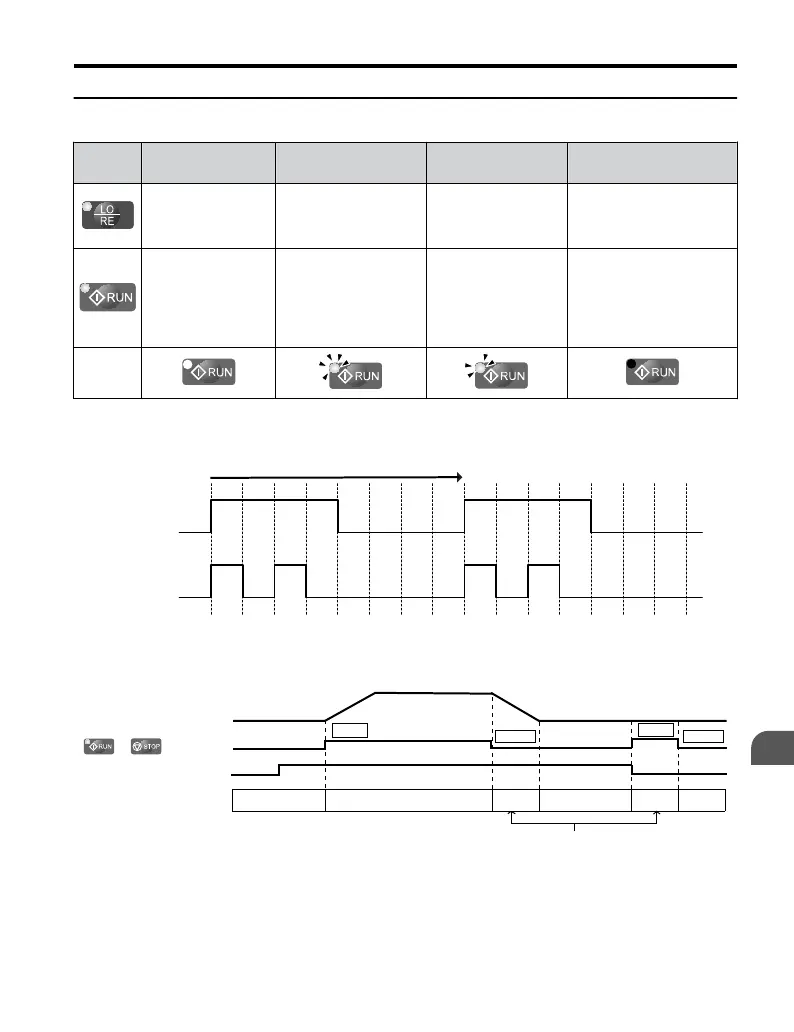

Figure 4.1 RUN LED Status and Meaning
/
Drive output frequency
during stop
Frequency setting
OFF
ON
Flashing
OFF
OFF
RUN LED
RUN
0 Hz
6 Hz
RUN
STOP
STOP
Figure 4.2 RUN LED and Drive Operation
4.1 Using the Digital LED Operator
YASKAWA ELECTRIC TOEP C710606 47A YASKAWA AC Drive – V1000 Quick Start Guide
85
4
Start-Up Programming & Operation

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
