No. Display Name Function
16 Communication Port
Port used for USB Copy Unit, LCD Operator Keypad, and for
connecting to a PC.
NOTICE: Use only specified cable when making
connections to the drive. Failure to comply may damage
the drive.
NOTICE: Do not open the port cover wider than 90
degrees. Failure to comply may break the port cover and
leave the unprotected port susceptible to damage.
u

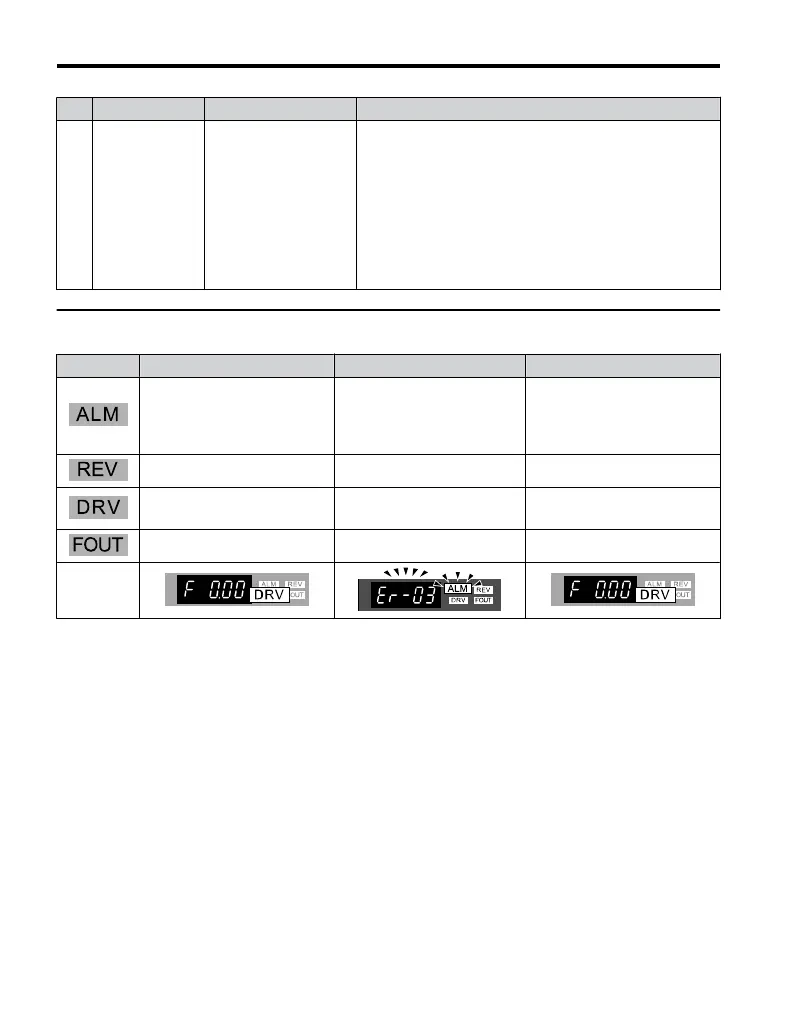

LED Screen Displays
Display Lit Flashing Off
When the drive detects an alarm
or error
When an alarm occurs
oPE detected
When a fault or error occurs
during Auto-Tuning
Normal state (no fault or alarm)
Motor is rotating in reverse Motor is rotating forward
Drive Mode
Auto-Tuning
When DriveWorksEZ is used
<1>
Programming Mode
Displays output frequency (Hz)
As illustrated
in this
manual
STOP
<1> Refer to the DriveWorksEZ instruction manual for further information.
4.1 Using the Digital LED Operator
84
YASKAWA ELECTRIC TOEP C710606 47A YASKAWA AC Drive – V1000 Quick Start Guide
